Industrial Model: Steam Plant Example
Point Cloud Data, 3D Models, and 3D Renderings provide a view of the facility as it currently exists not only improves simulations for engineers but also improves project visibility for stakeholders.
Scope Snapshot
- Registered colorized point cloud and drone photogrammetry

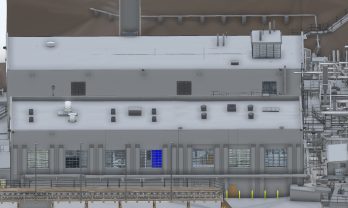

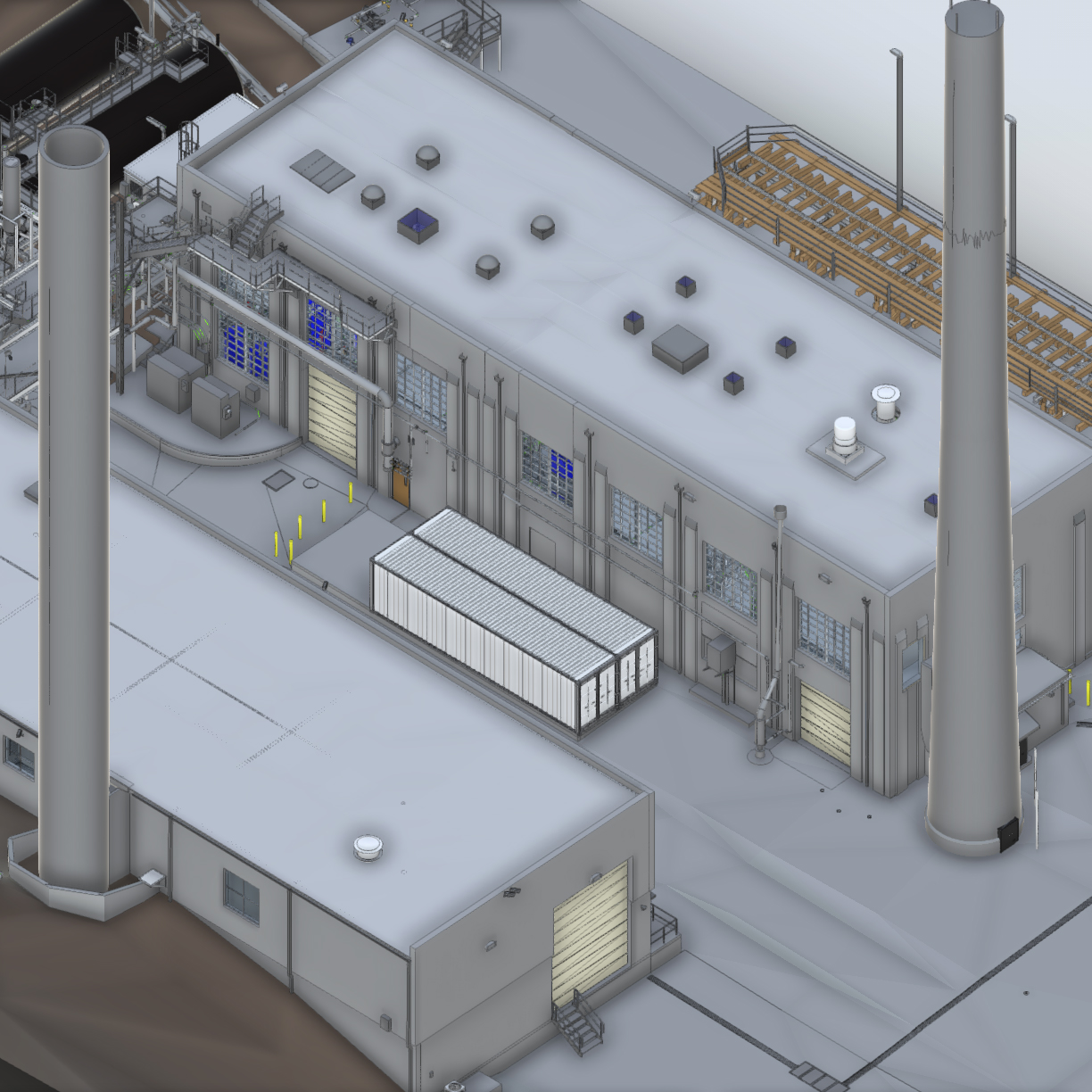

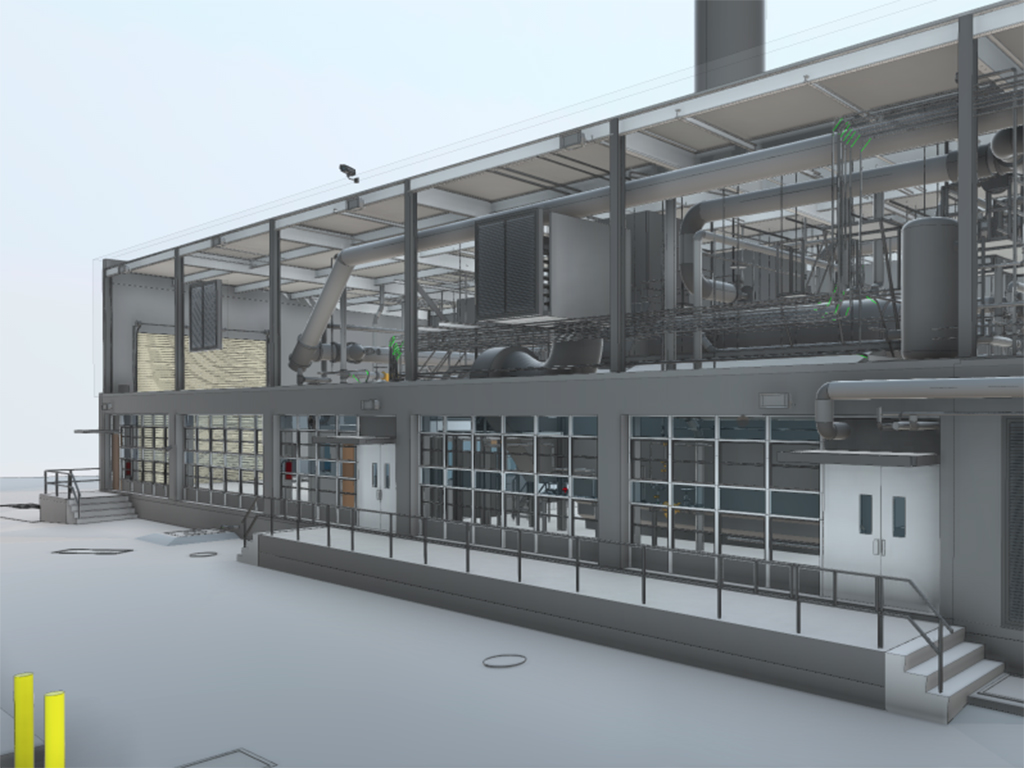

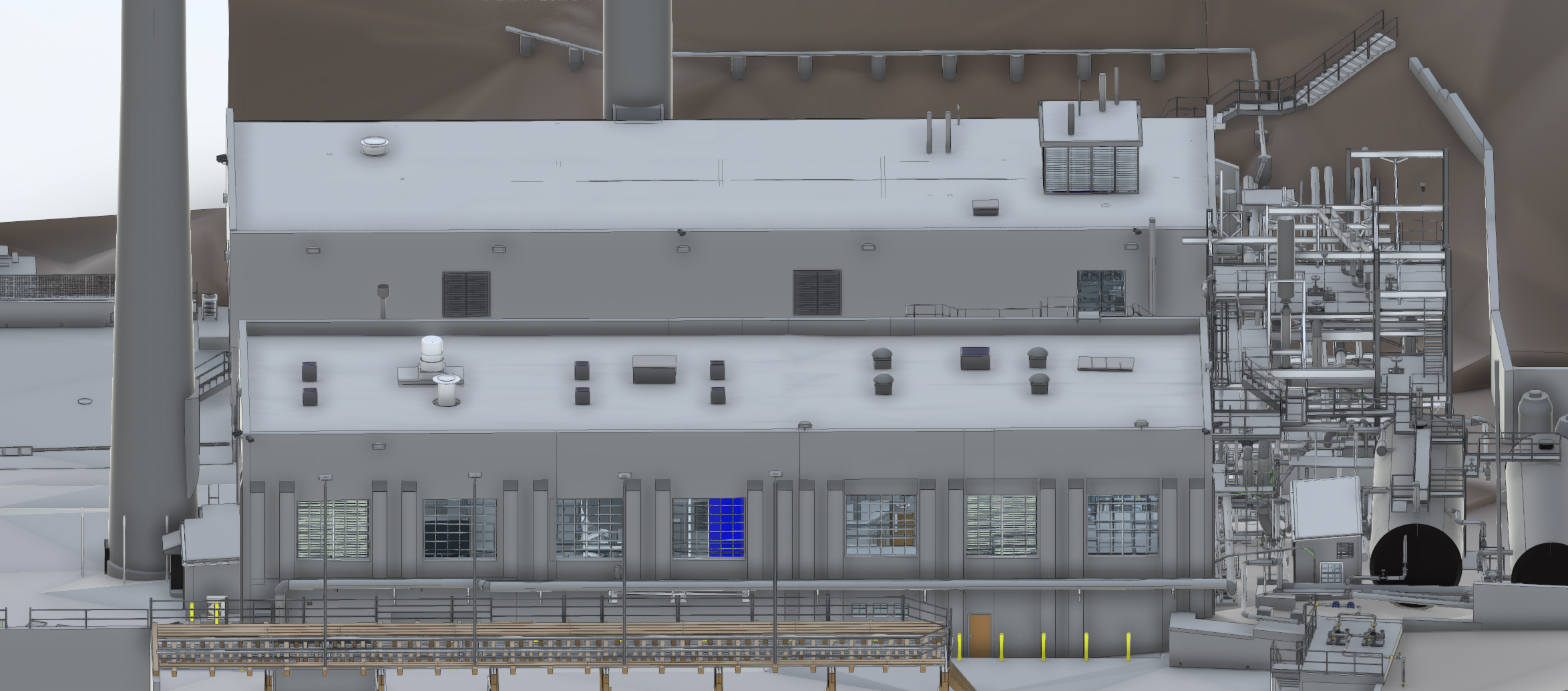

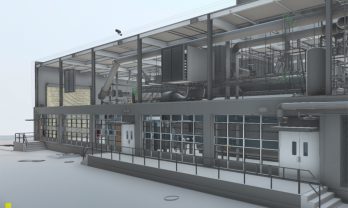

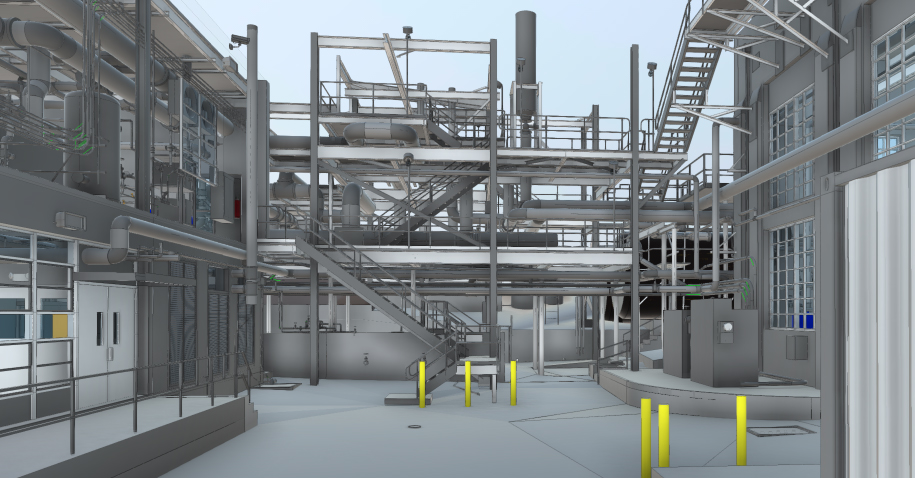

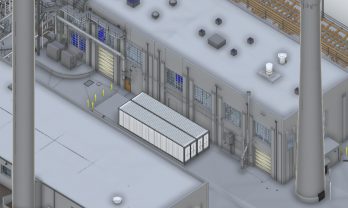

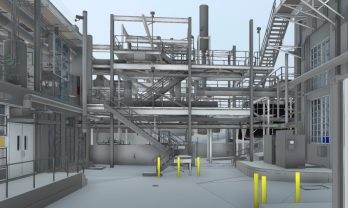

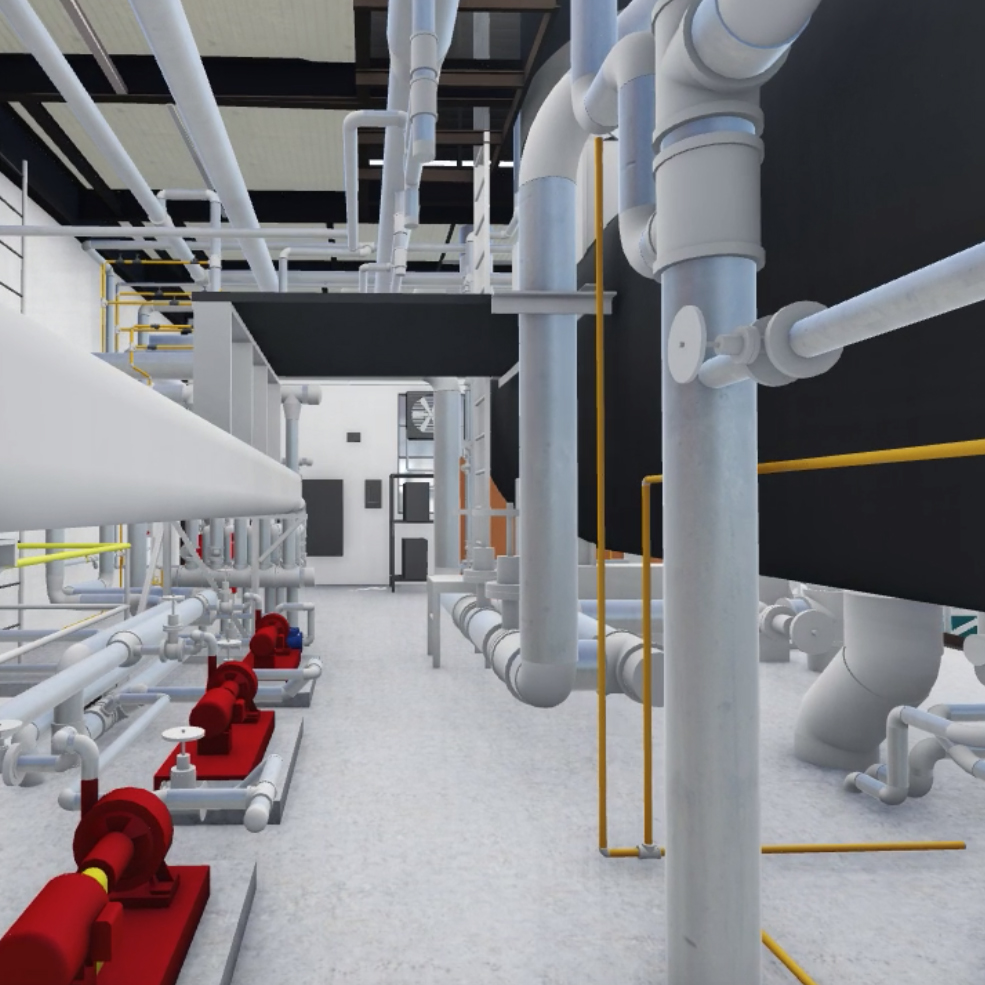

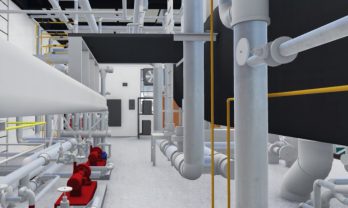

- Complete Revit model including interior and exterior structural elements, piping details, and site topography

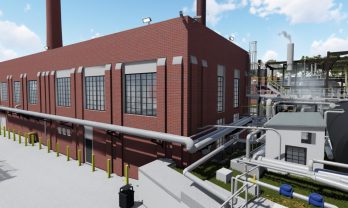

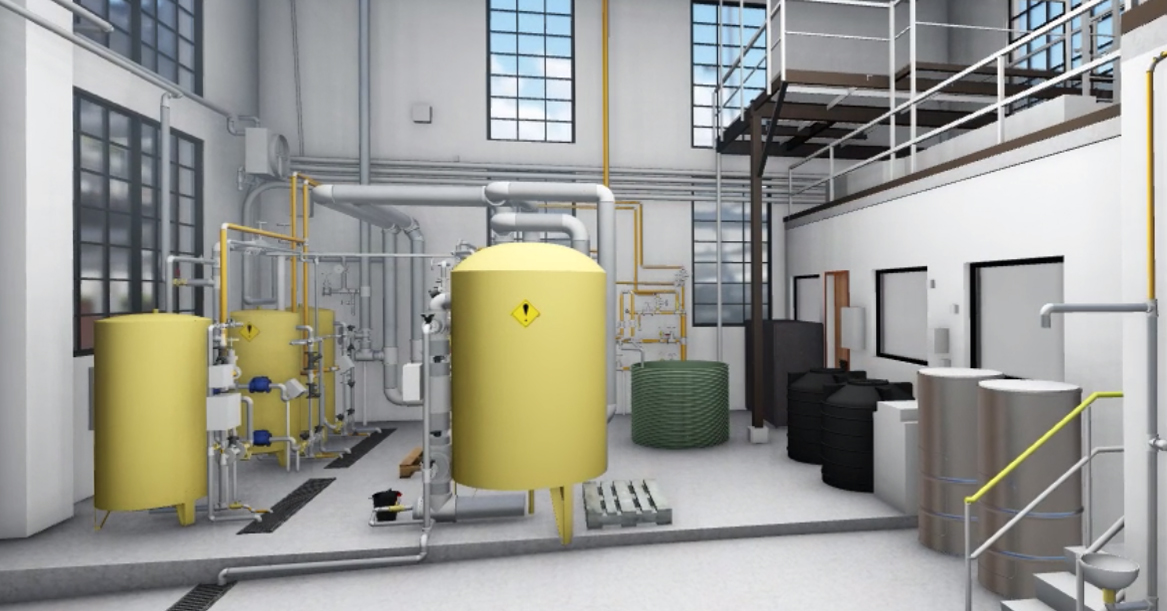

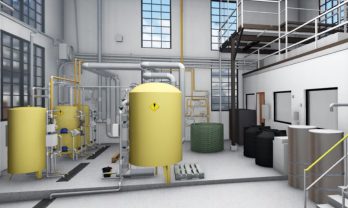

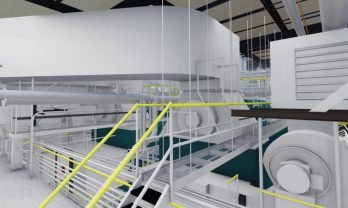

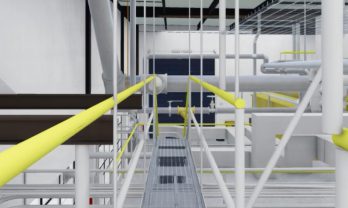

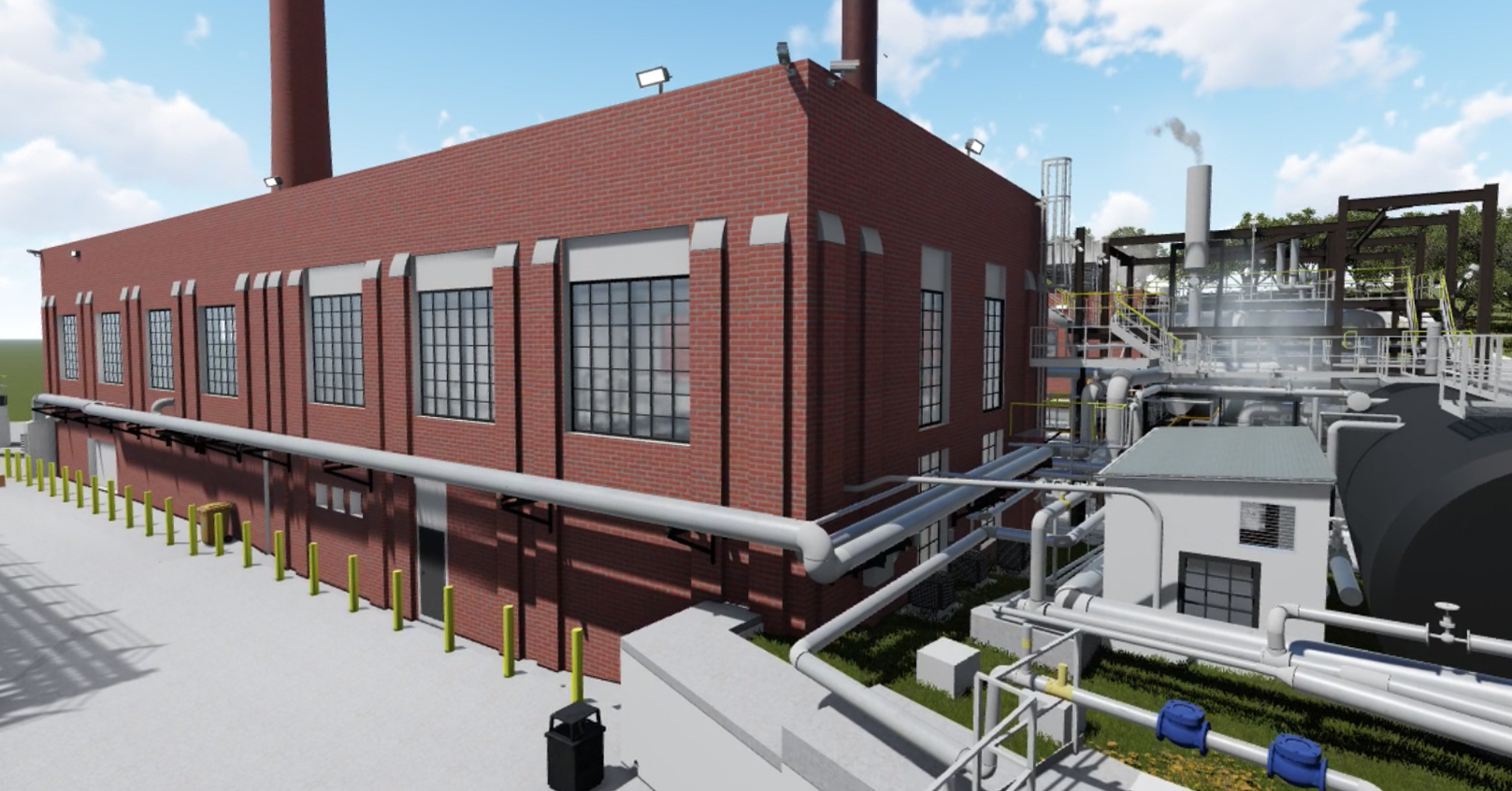

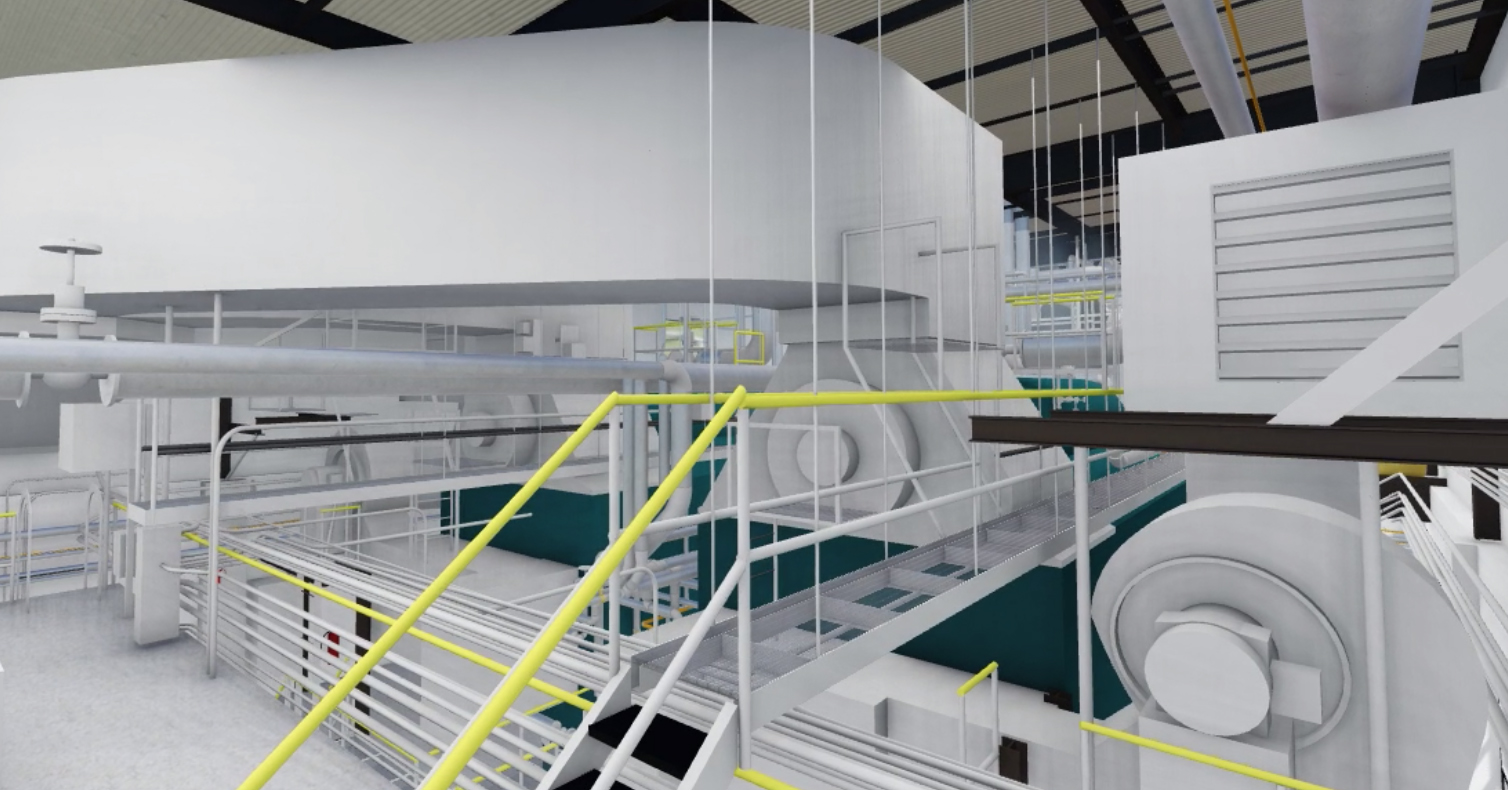

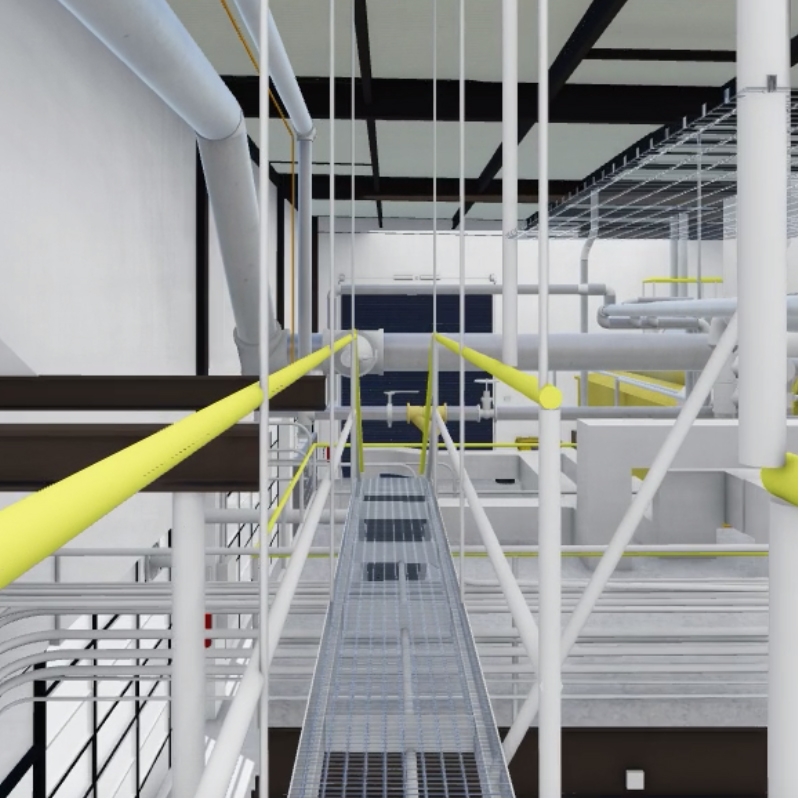

- Rendered 3D video walkthrough
Technical data
-
ServicesLaser Scanning, Aerial Survey, Modeling from Point Cloud
-
DeliverablesRecap Files, Revit Model, Rendering
-
EquipmentFARO Focus 3D Scanner, Drone
