Football Stadium Captured & Modeled in 5 Weeks

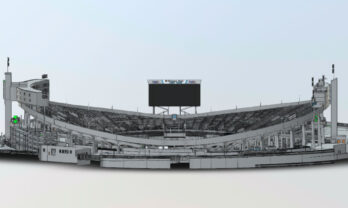

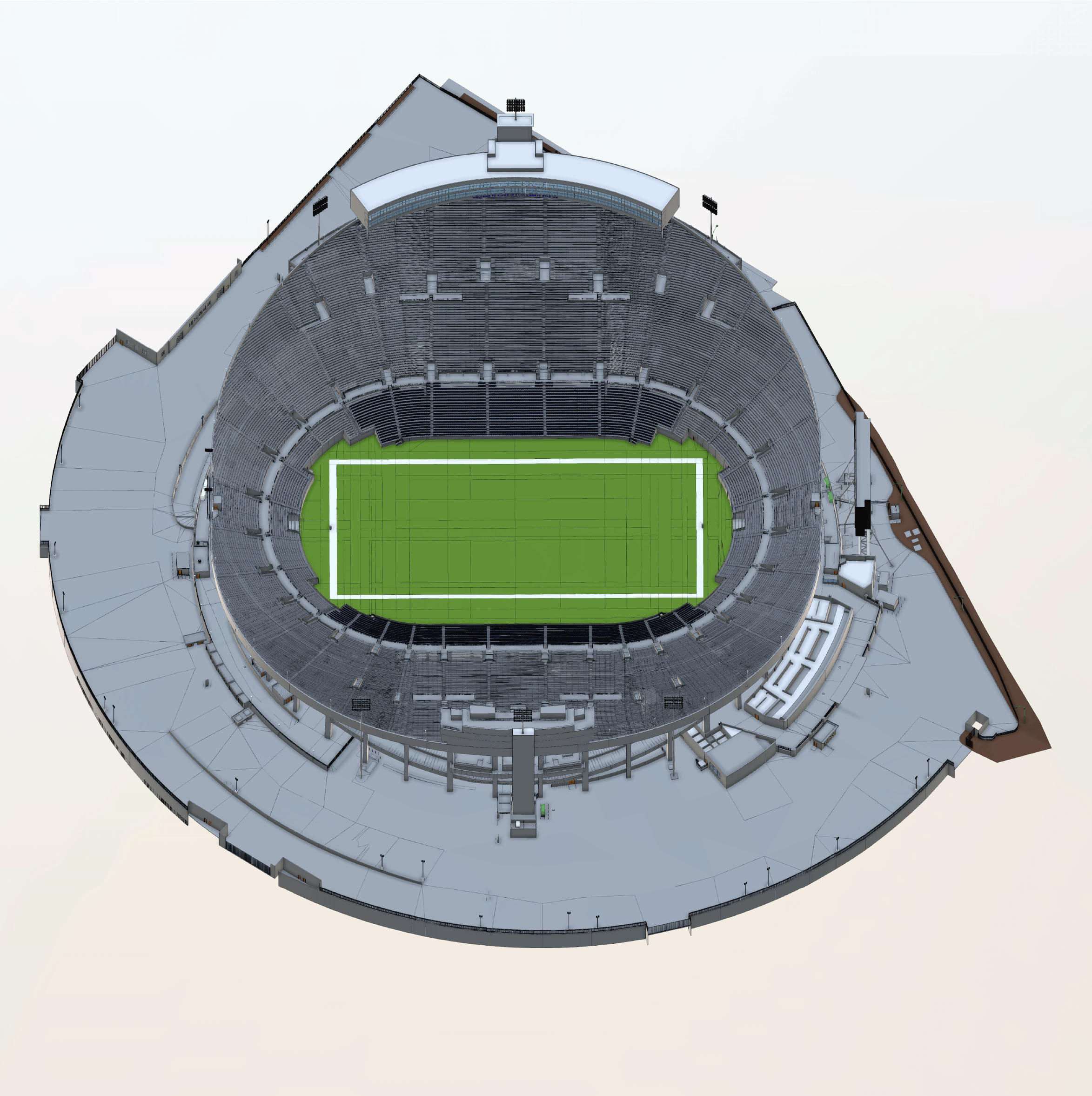

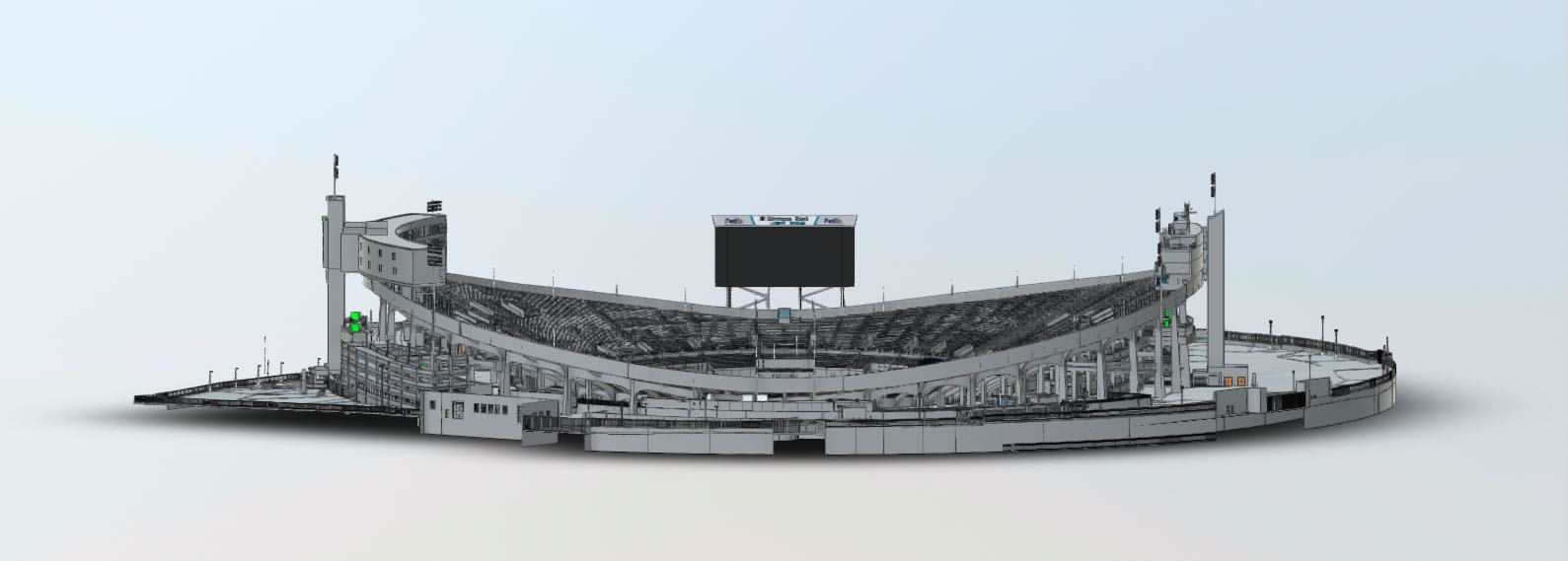

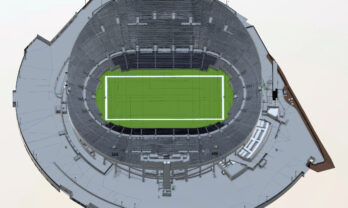

The renovation of a 66,000-seat stadium is no small undertaking. For Coast2Coast clients that means starting the project with accurate, updated, comprehensive information. To complete the reality capture and existing condition model, our expert 3D technicians used multiple tools including laser scanning equipment, a mobile mapping system, and drone technology. The team completed the fieldwork and delivered point cloud data with the full Revit model paired with a 360 virtual tour in just five weeks.

Scope Snapshot

• Architectural Elements
• MEP and Fire protection equipment
• Seating
• Stadium features (goal posts, press/sky boxes, jumbotron)
• Site Elements (sidewalks, hardscapes, light/flag poles)

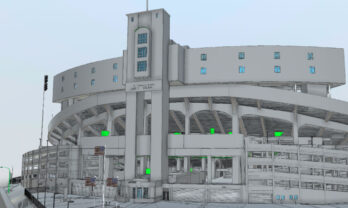

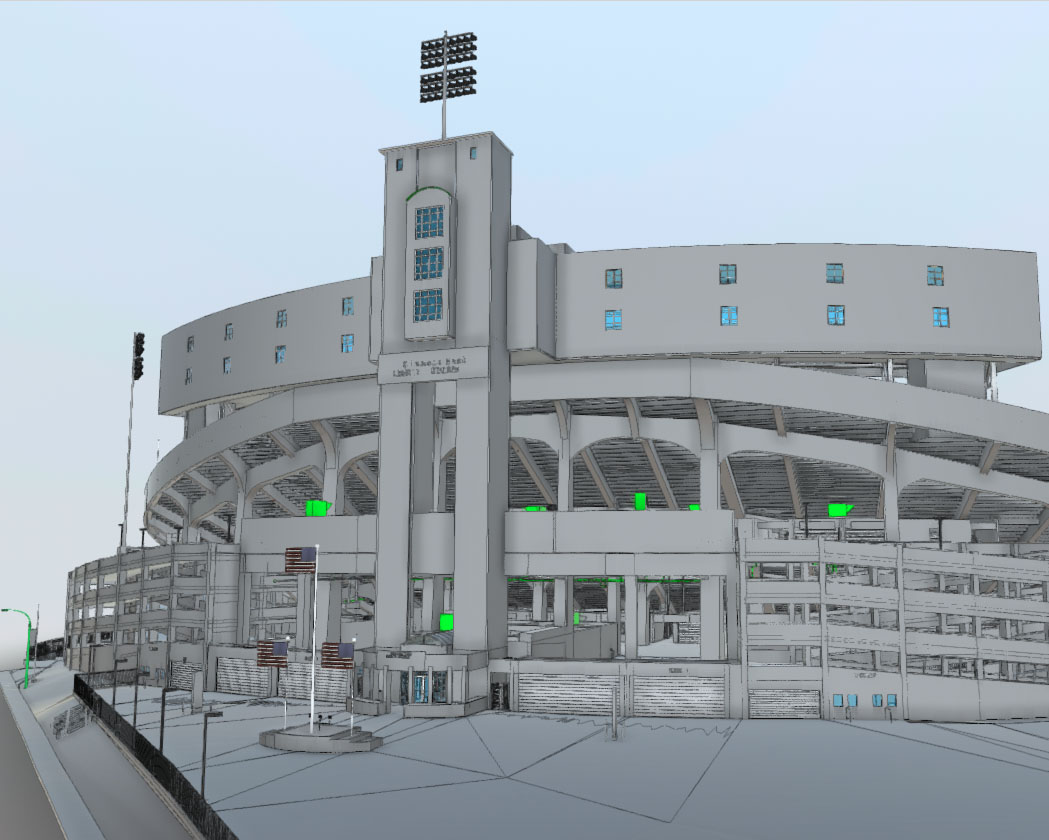

• Ticketing Entrance

Value Adds

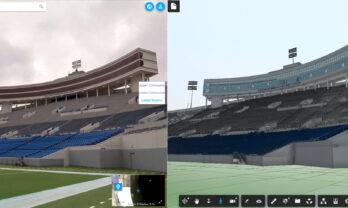

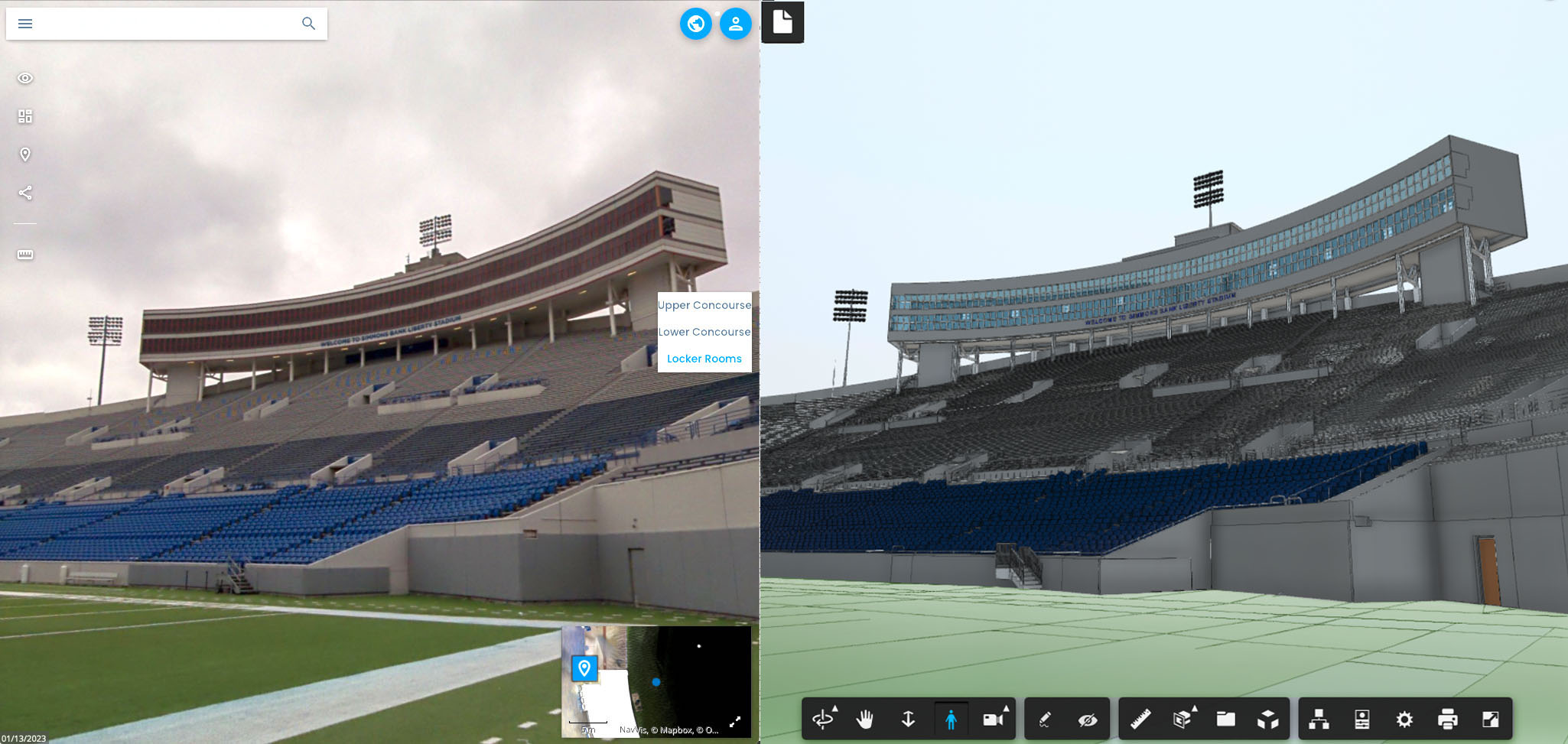

• 360 Virtual Tour integrated and synchronized with Revit model
• Virtual Tour highlighting key points of interest such as expansion joints
• Process allowed for additional phases to be completed without rework


Technical data
  • Survey Method
    Laser Scanning, Mobile Mapping, Drone Photogrammerty
  • Deliverables
    3D Revit Model, 360 Virtual Tour, Point Cloud
  • Equipment
    Faro Laser Scanners, NavVis SLAM Backpack, Drone
  • Size
    660,000 Seat Stadium
