Healthcare: Medical Office Building Example

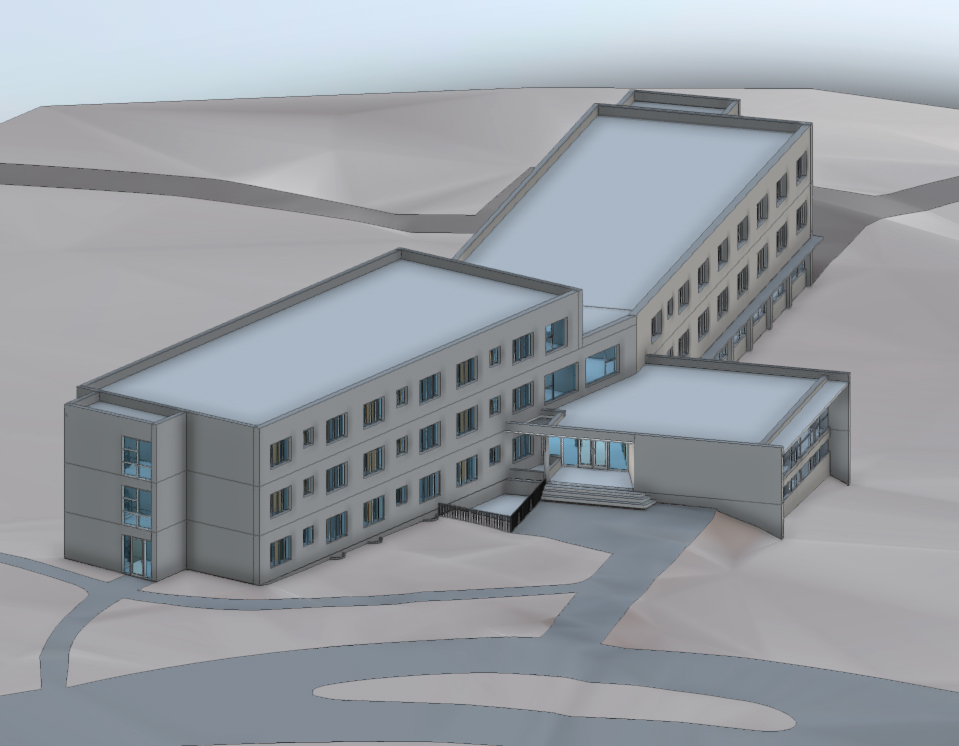

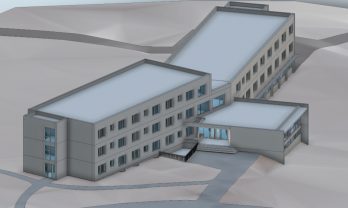

Ever have a project where plans are missing from a single area? It happens all the time. In this case, Coast 2 Coast captured the approximately 75,000 square feet of this Medical Office Building in just 3 days. Using laser scanning technology, the 1949 building was modeled from point cloud data. With delivery just 2 weeks later, the design team was quickly able to complete design finish upgrades without delaying the rest of the project.

Scope Snapshot

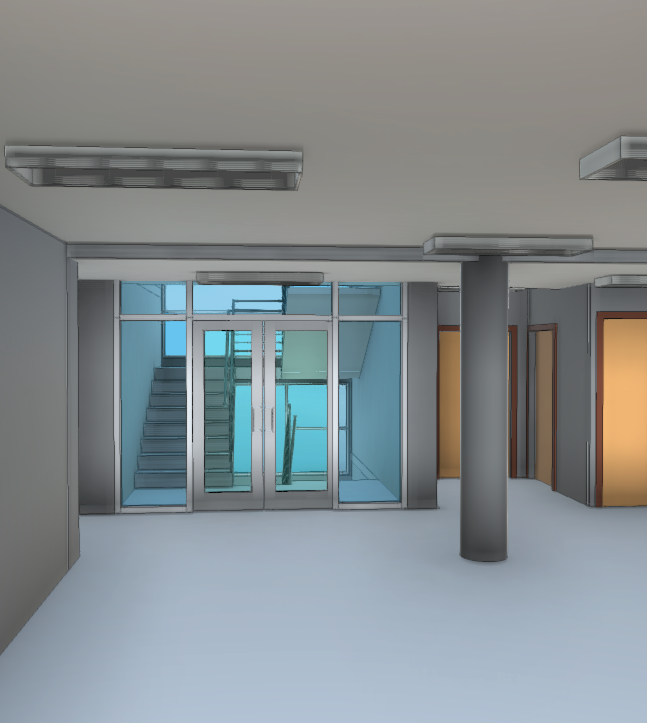

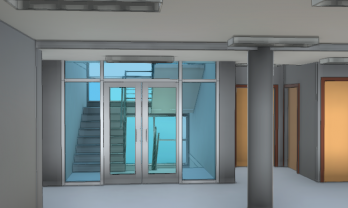

Interior Modeling
  • Structure including walls, windows, doors, and columns

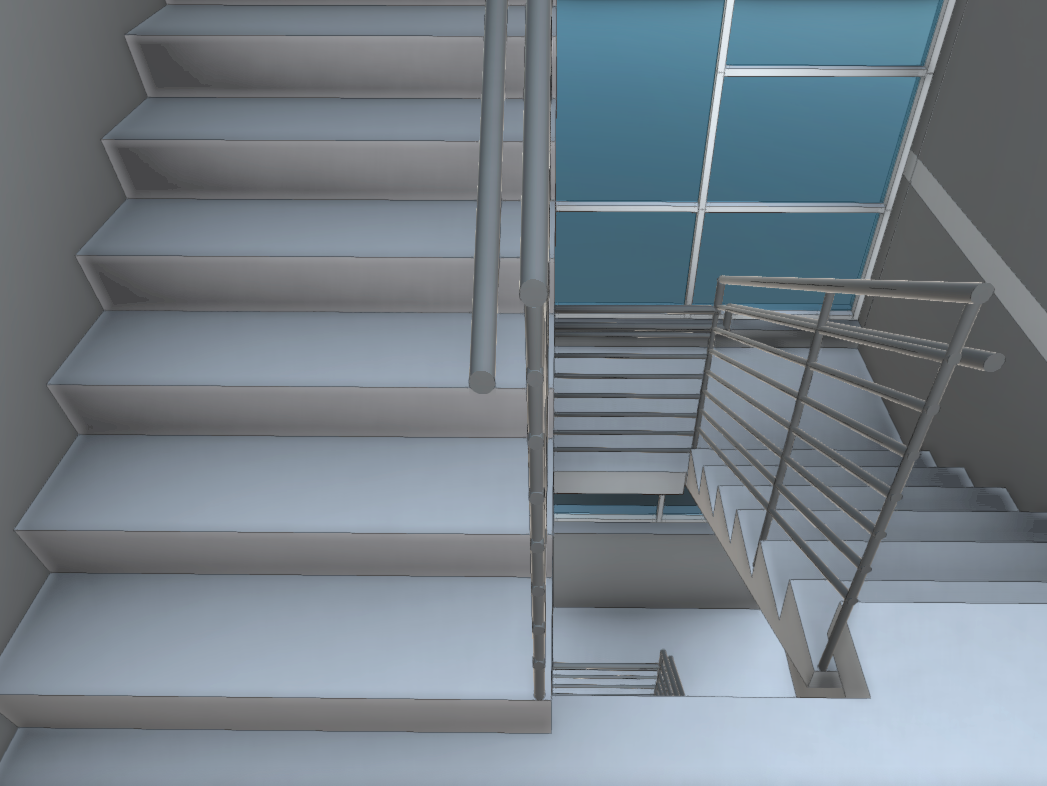

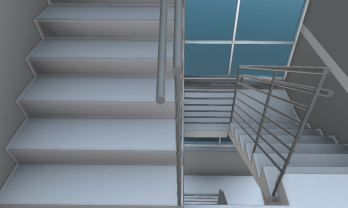

  • Stairs, ramps, and other changes in level
  • Electrical finishes, plumbing fixtures, and casework

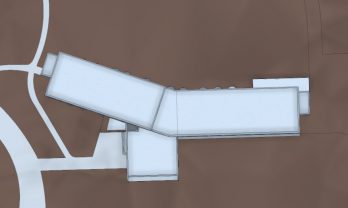

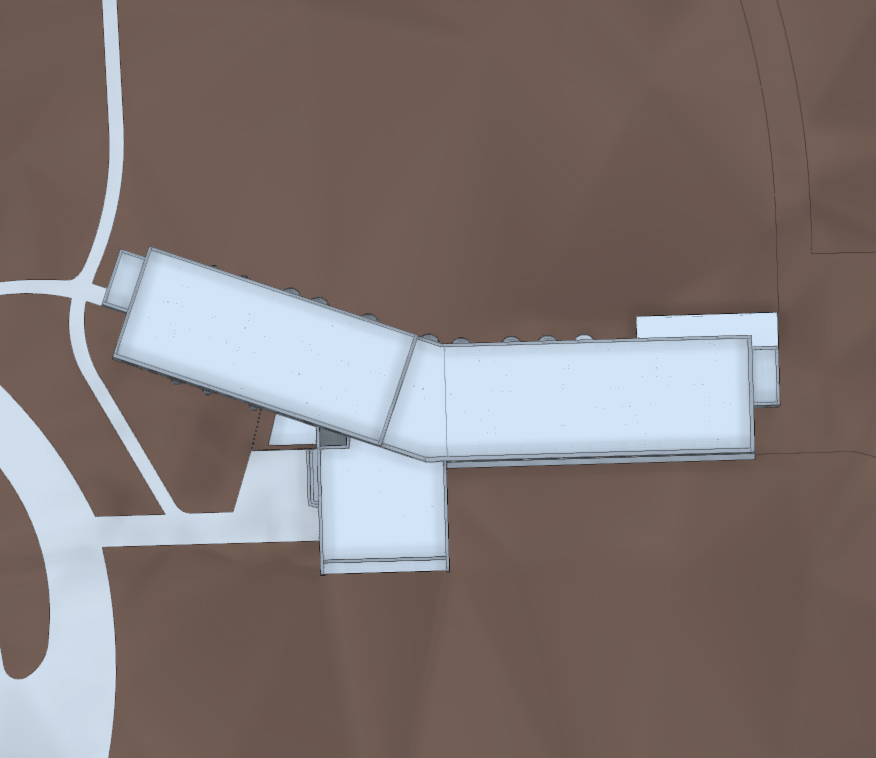

Site Plan Modeling
  • Topographical Information
  • Sidewalks
Technical data
  • Survey Method
    Laser Scanning, 3D Modeling
  • Deliverables
    3D Revit Model, Online Visualization
  • Equipment
    Faro Laser Scanners
