Hospitality Survey Example: Boston Public Space

Updated as-built drawings are a critical reference over the working life of any renovation improvement project. These existing condition documents help design teams locate hidden features, troubleshoot problems, and serves as a tool for project planning or expansion.

Scope Snapshot

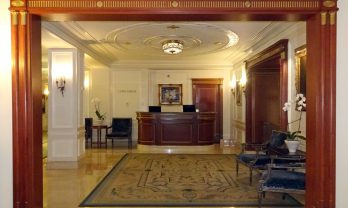

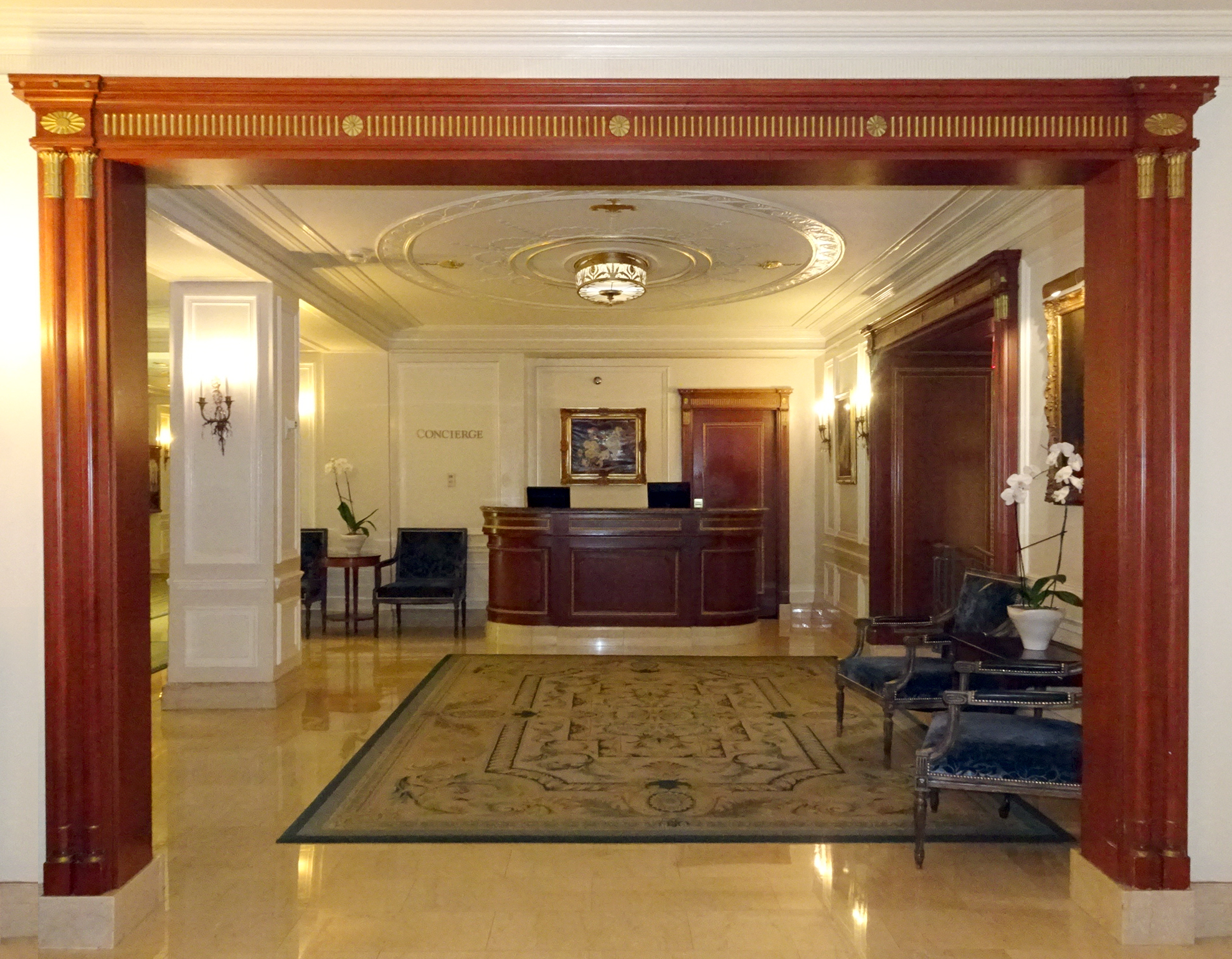

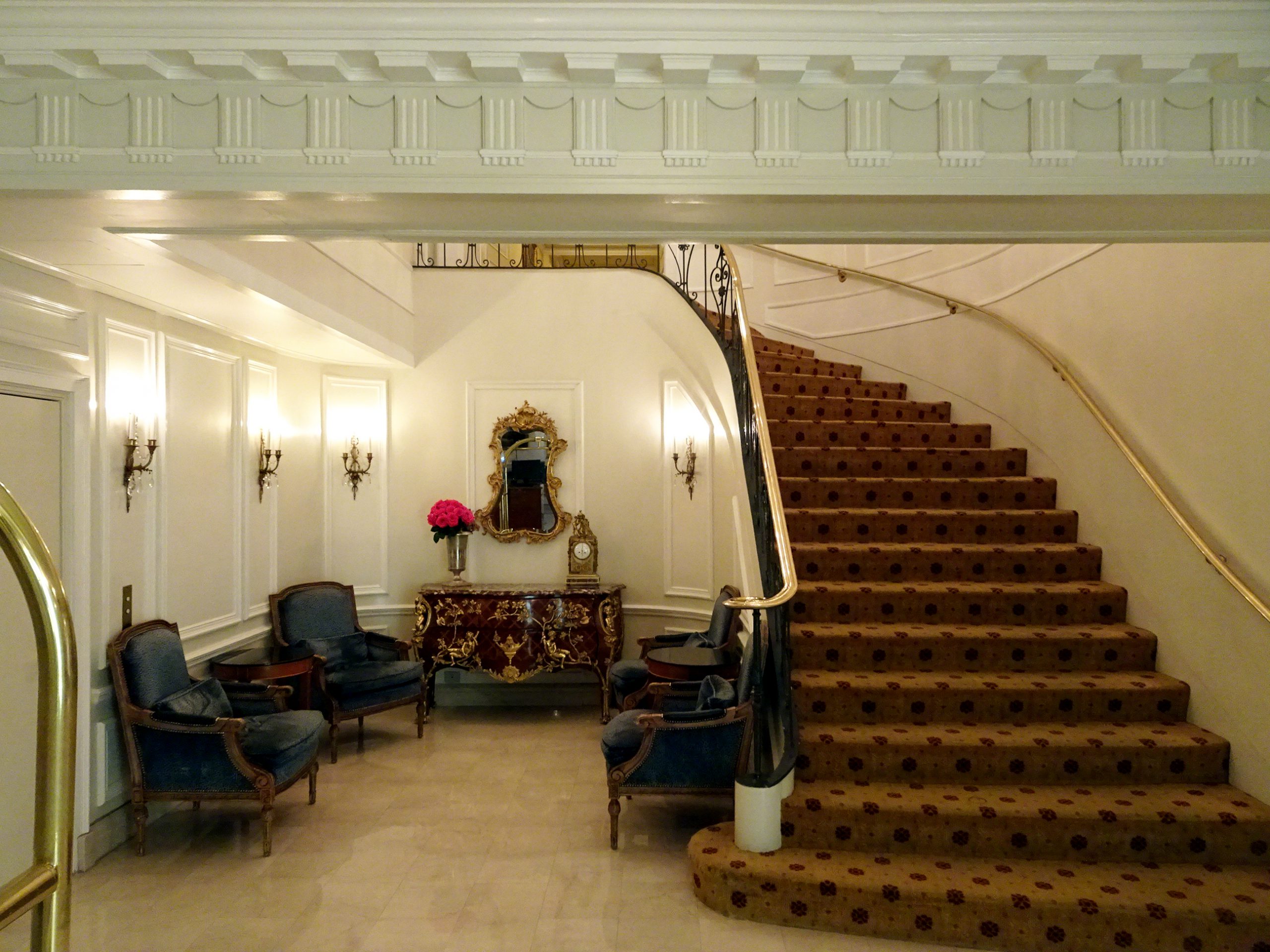

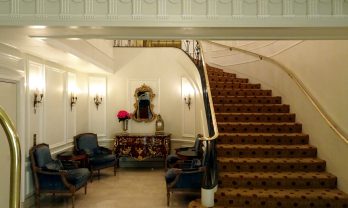

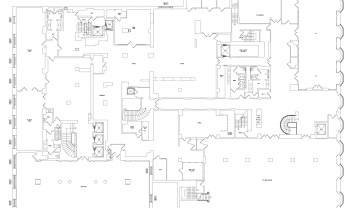

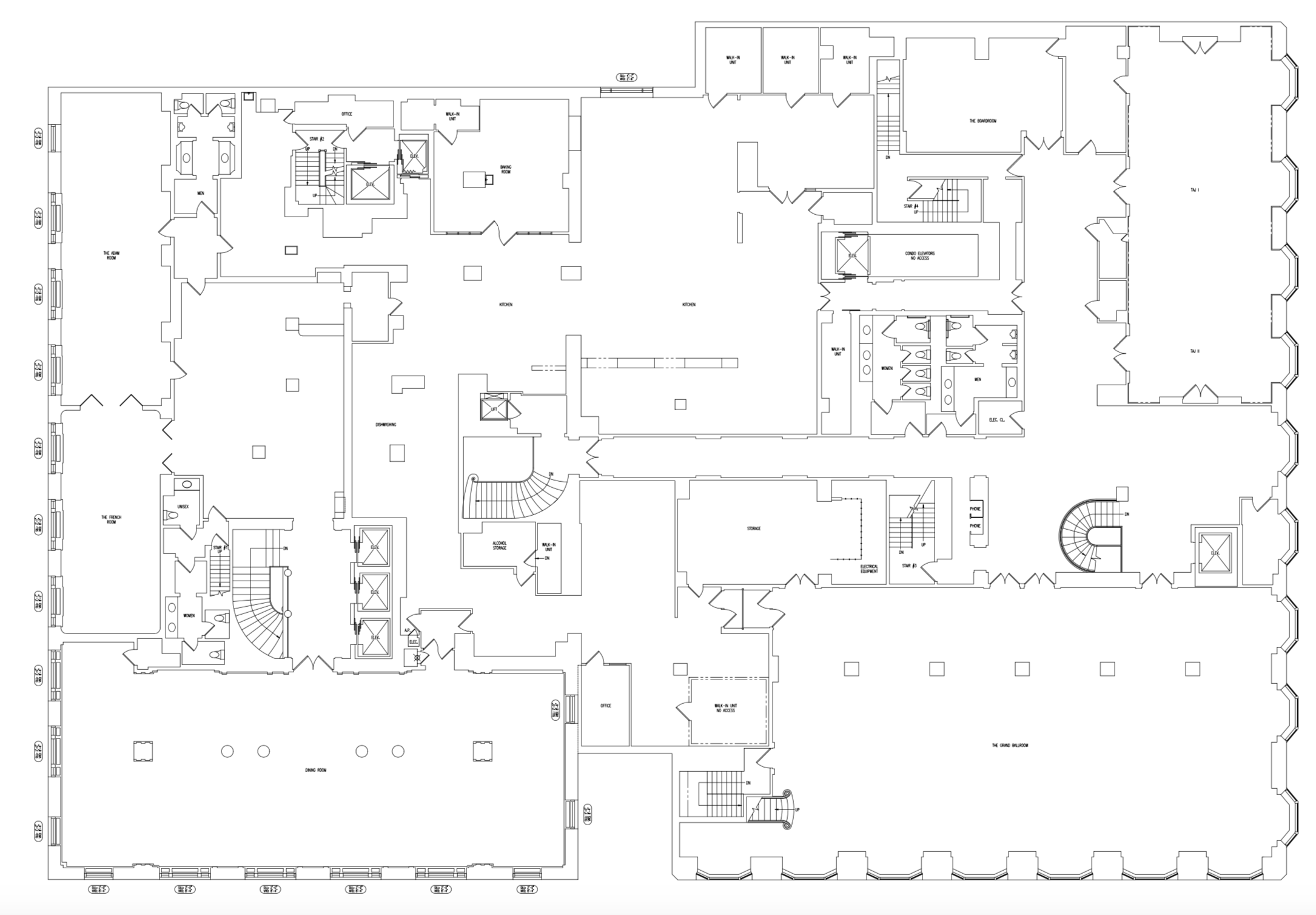

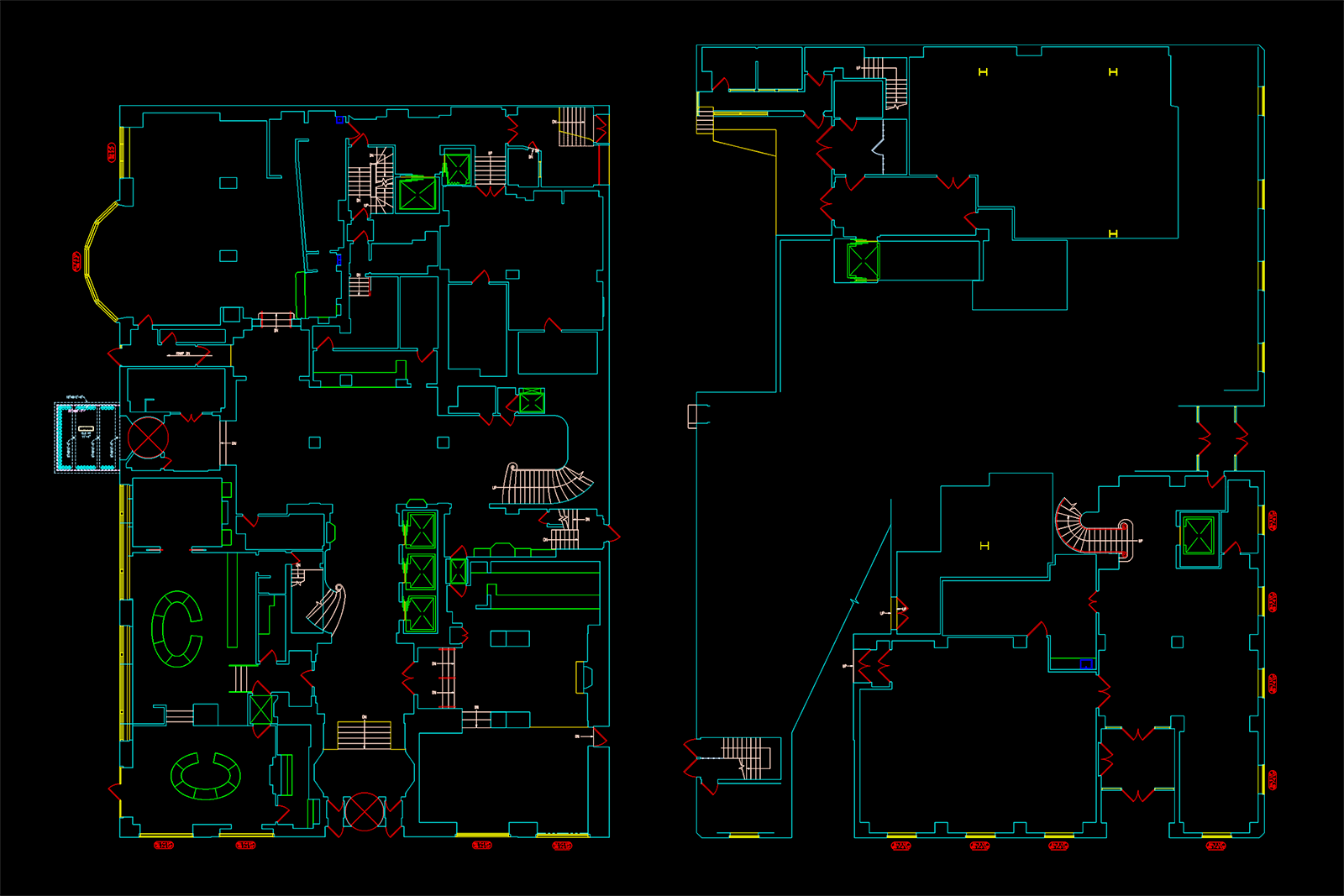

  • Floor Plan
    • Standard structural elements including walls, doors, windows, finished columns
    • Elevator cabs, stairs, and ramps with railings
    • Fixed cabinetry, counters, and bars
    • Lighting and Sconces
    • Electrical finishes, fire protection equipment/signage, and HVAC controls
  • Reflected Ceiling Plan

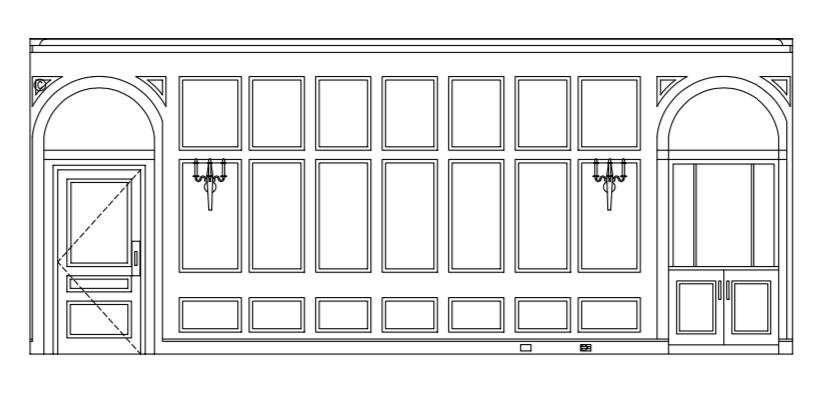

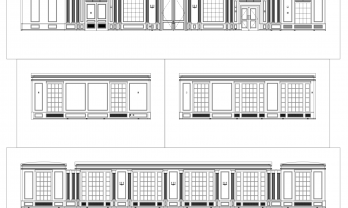

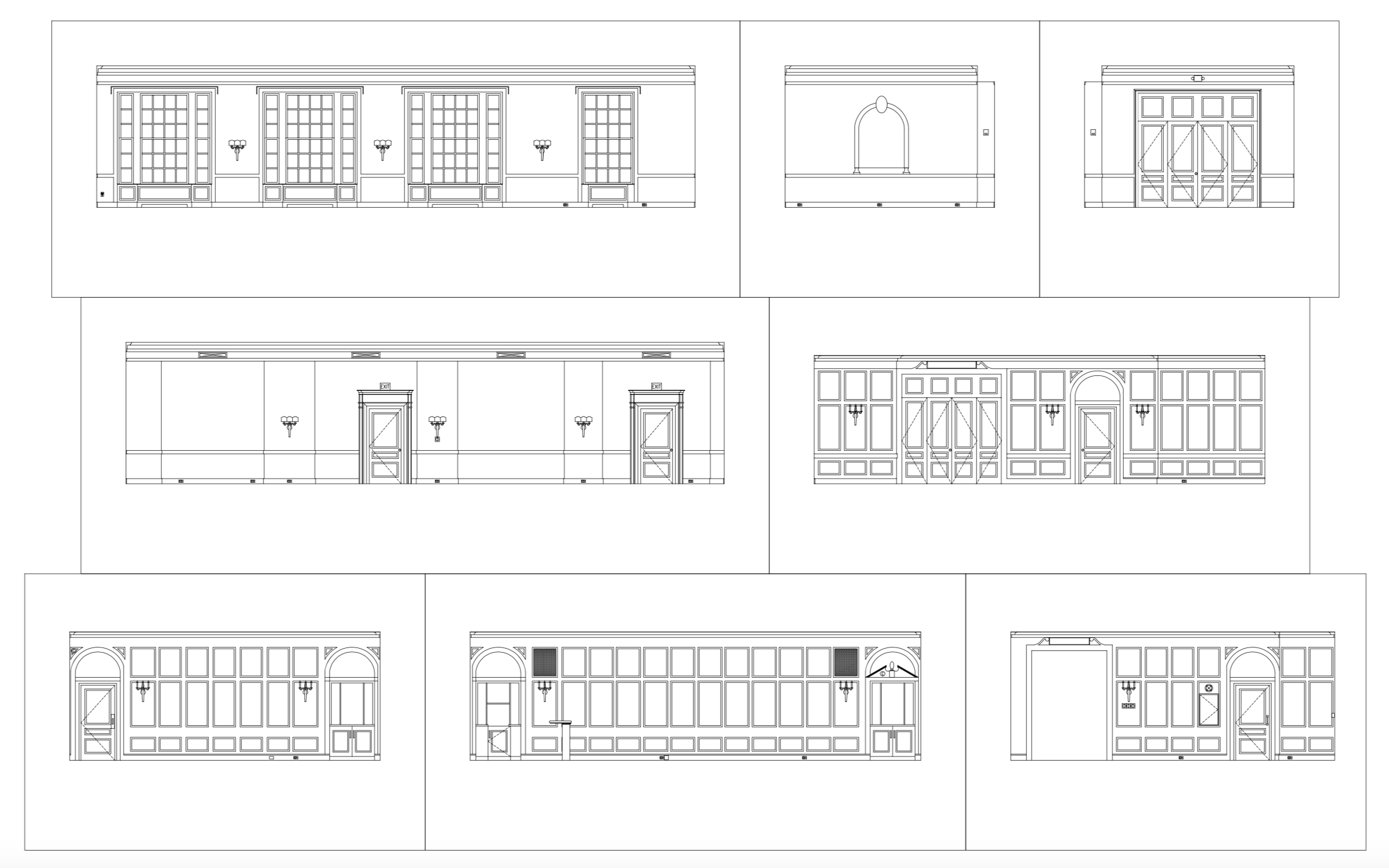

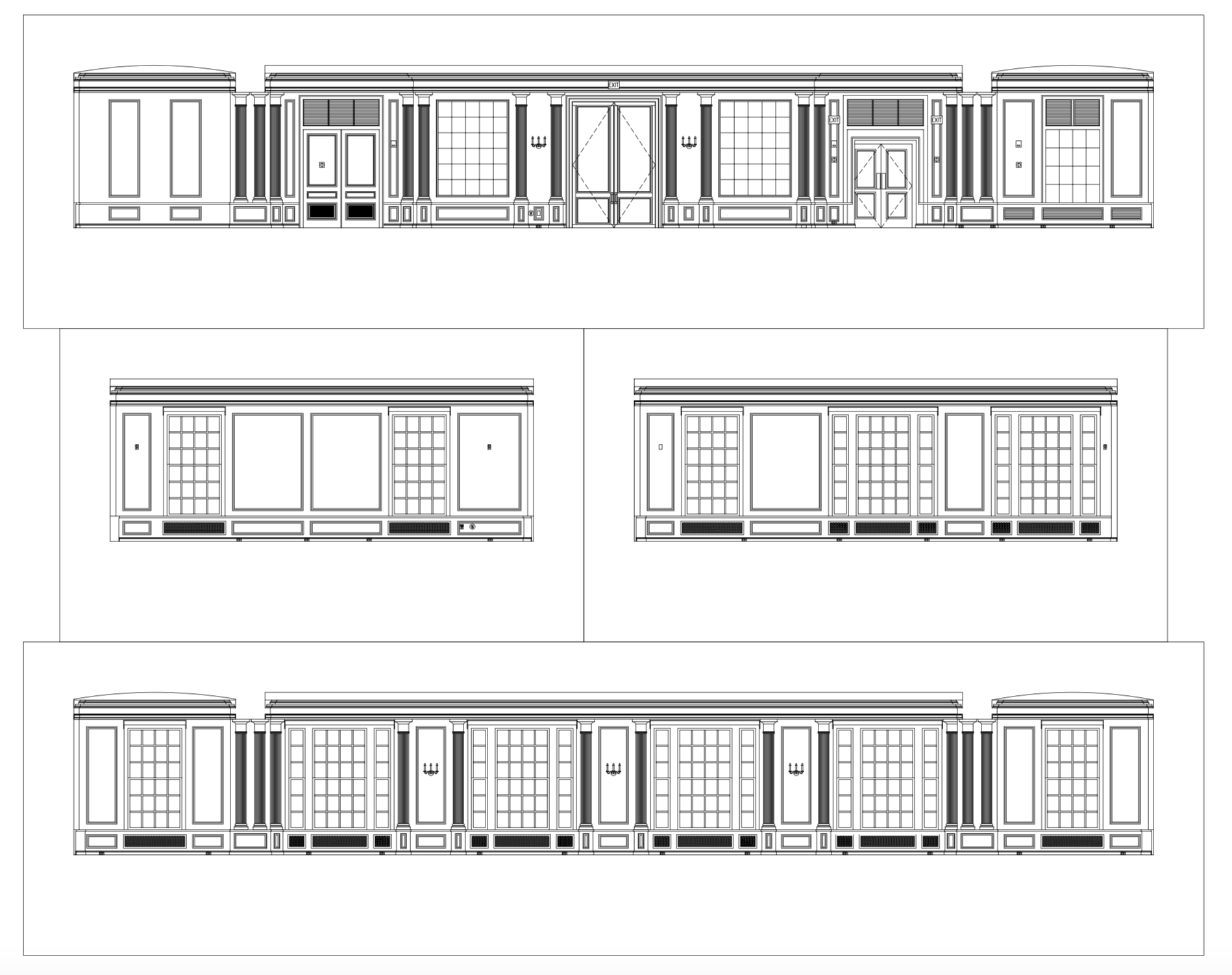

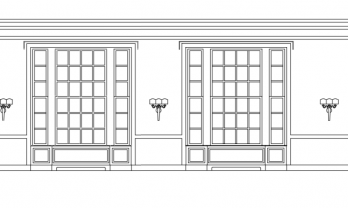

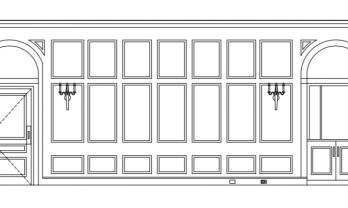

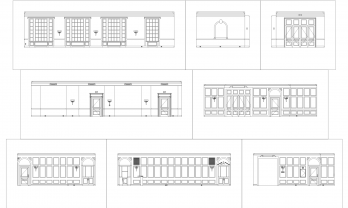

  • Interior Elevations
    • Detail of all Floor Plan items present on walls and other significant permanent objects

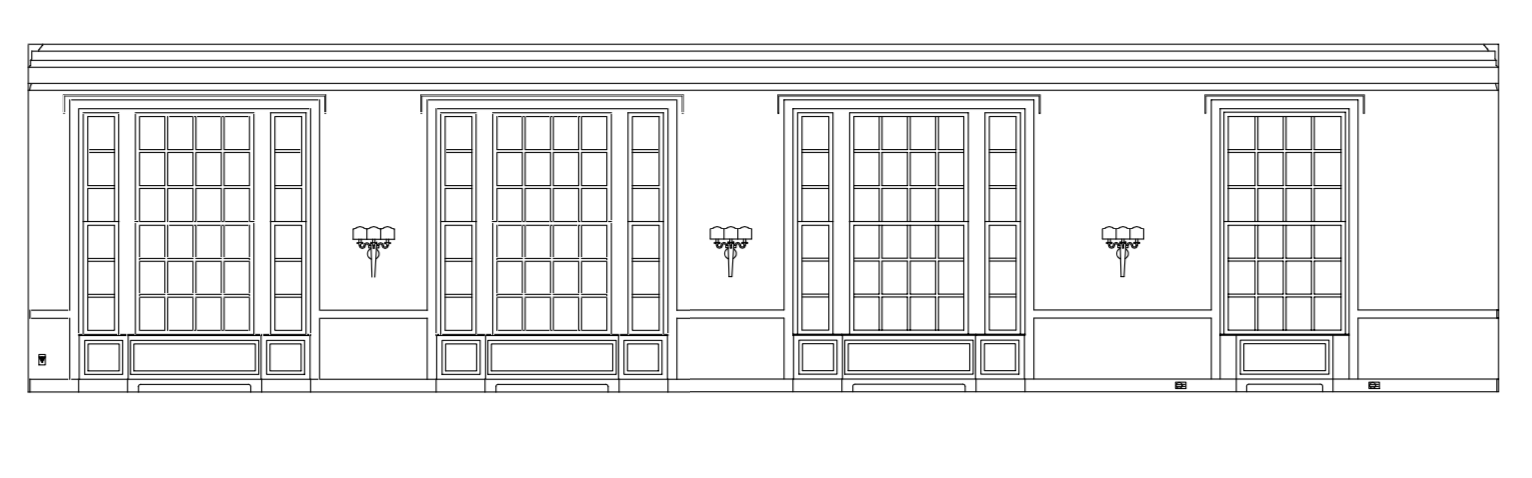

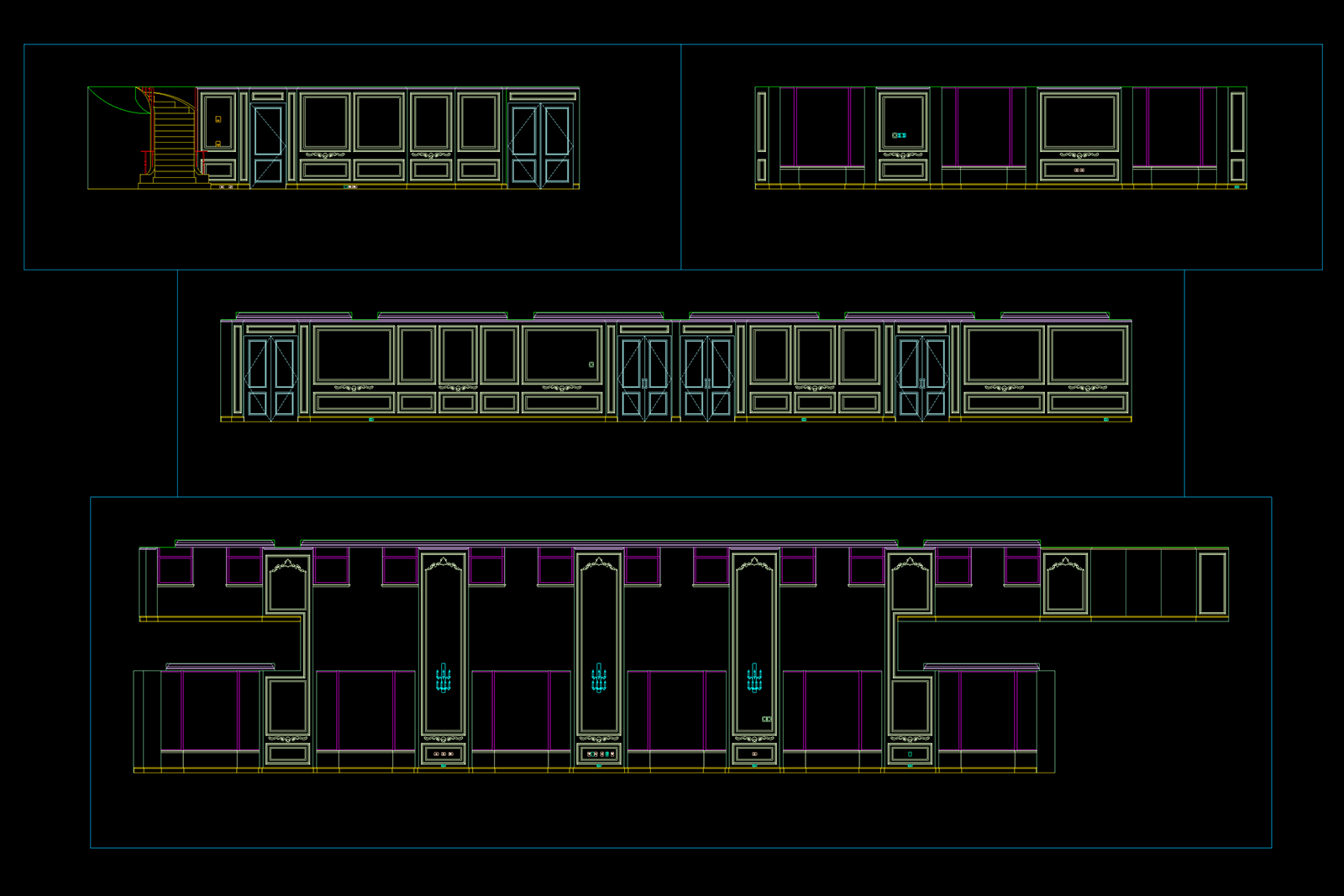

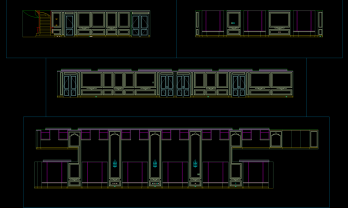

    • Window elevations including headers and sills, mullions and glazing, cornices and drapery pockets, and molding
    • Millwork including baseboards, chair rail, door and window trim, and crown molding
Technical data
  • Survey Method
    Laser Measure to CAD while on site
  • Deliverables
    AutoCAD Drawings, Photo Documentation
  • Equipment
    Laser Disto, Total Station
