Industrial Modeling: Chemical Plant Example

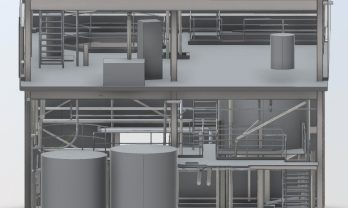

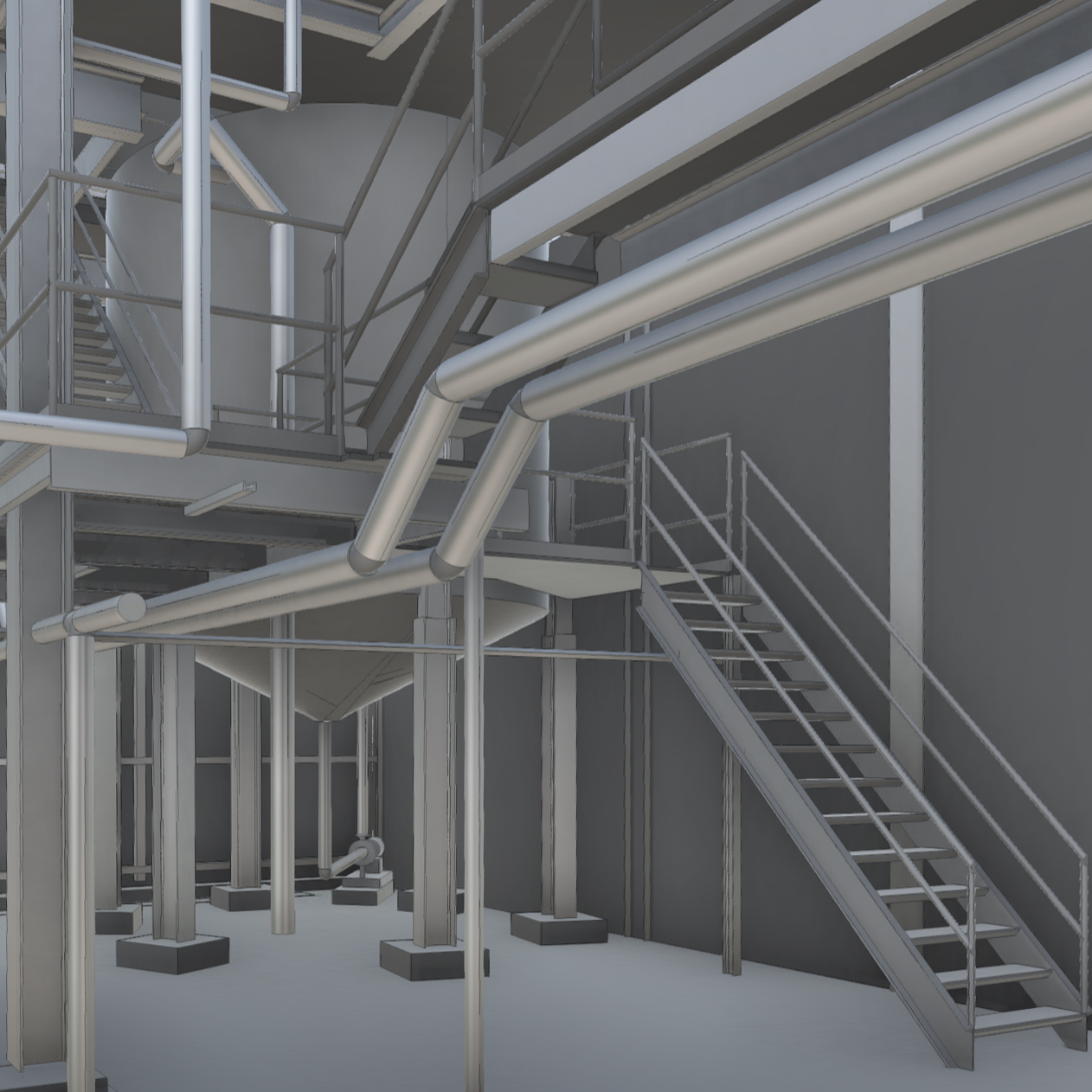

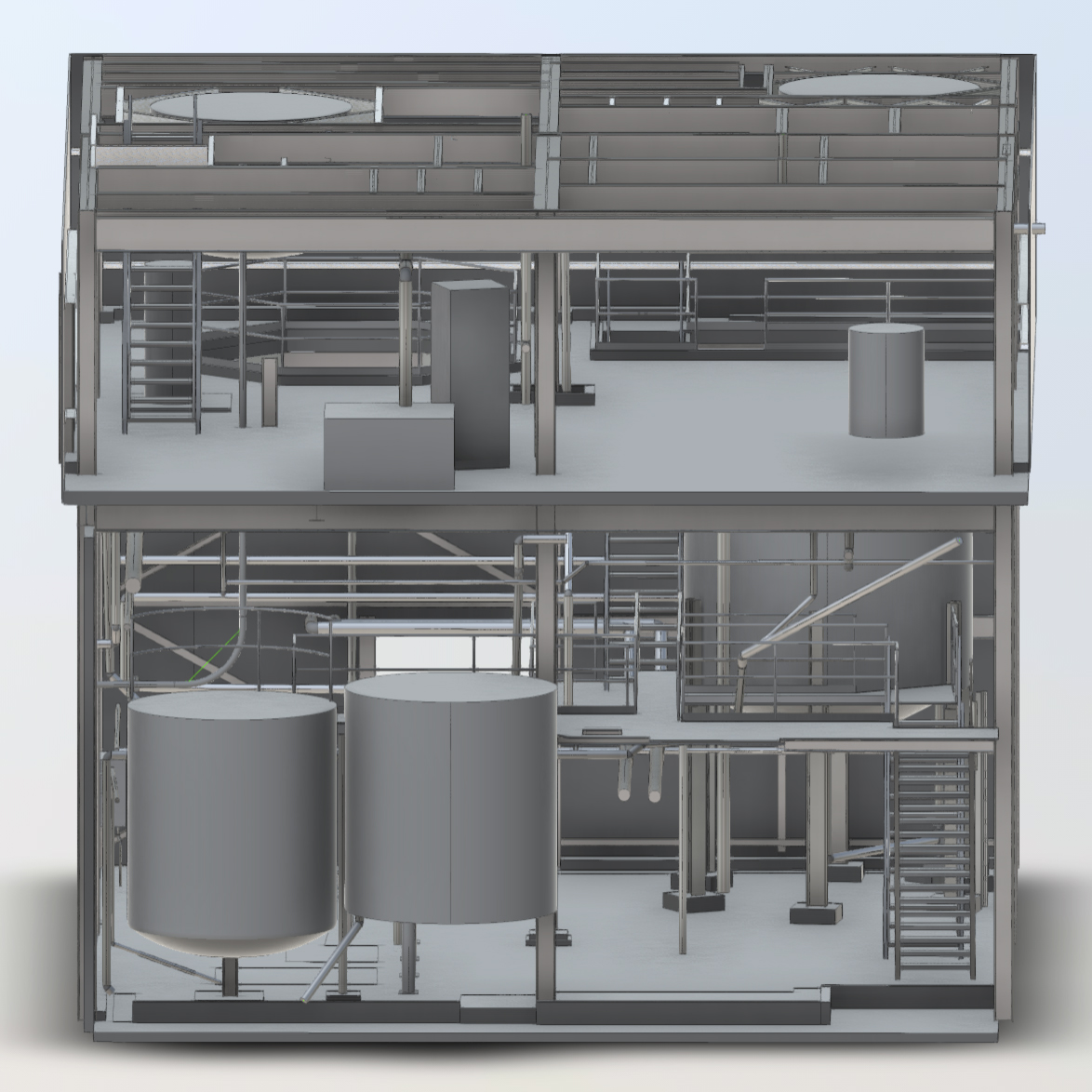

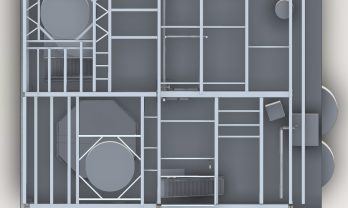

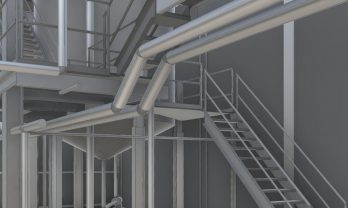

Creating models for industrial plants helps expedite improvements and aligns well with project phasing. Coast 2 Coast created a 3D model specific to the plant's Main Processing Area for this manufacturer of high-performance, specialty chemicals.

Scope Snapshot

  • Structural elements including walls, floors, and beams
  • Platform support structure
  • Ceiling deck
  • Hard ducts including conduit runs, piping, and items within the 5’ radius of the focus area
Technical data
  • Services
    3D Model from Point Cloud, Consultation
  • Deliverables

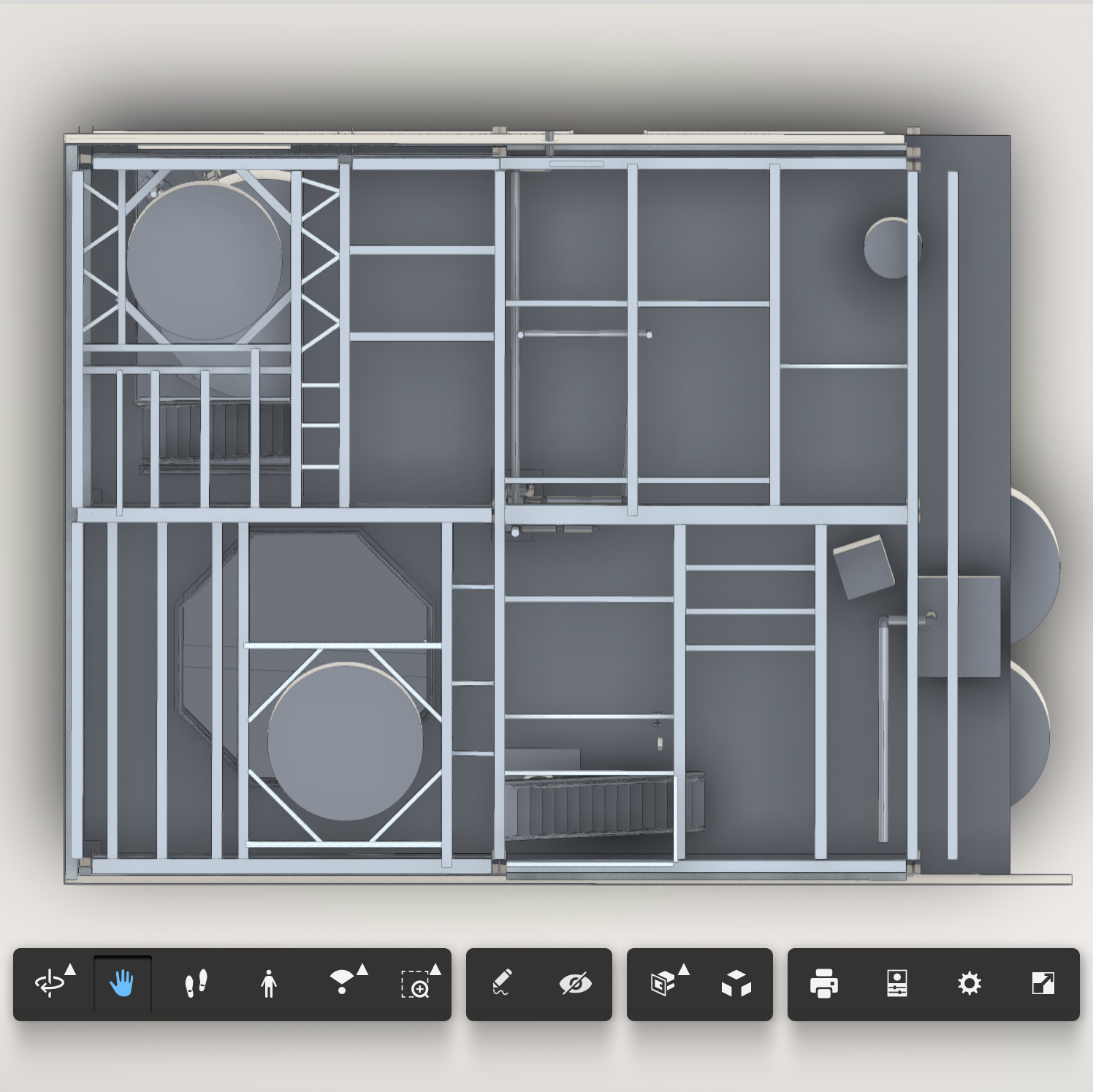

    3D AutoCAD Model, Online Visualization
