Multi-family Housing: 3 BD Apartment Sample

In addition to the model, we deliver organized sheets that include: schedules with quantities of Items, Interior Elevation views, Reflected Ceiling Plans, Electrical Plans, and Floor Finishes.

Scope Overview

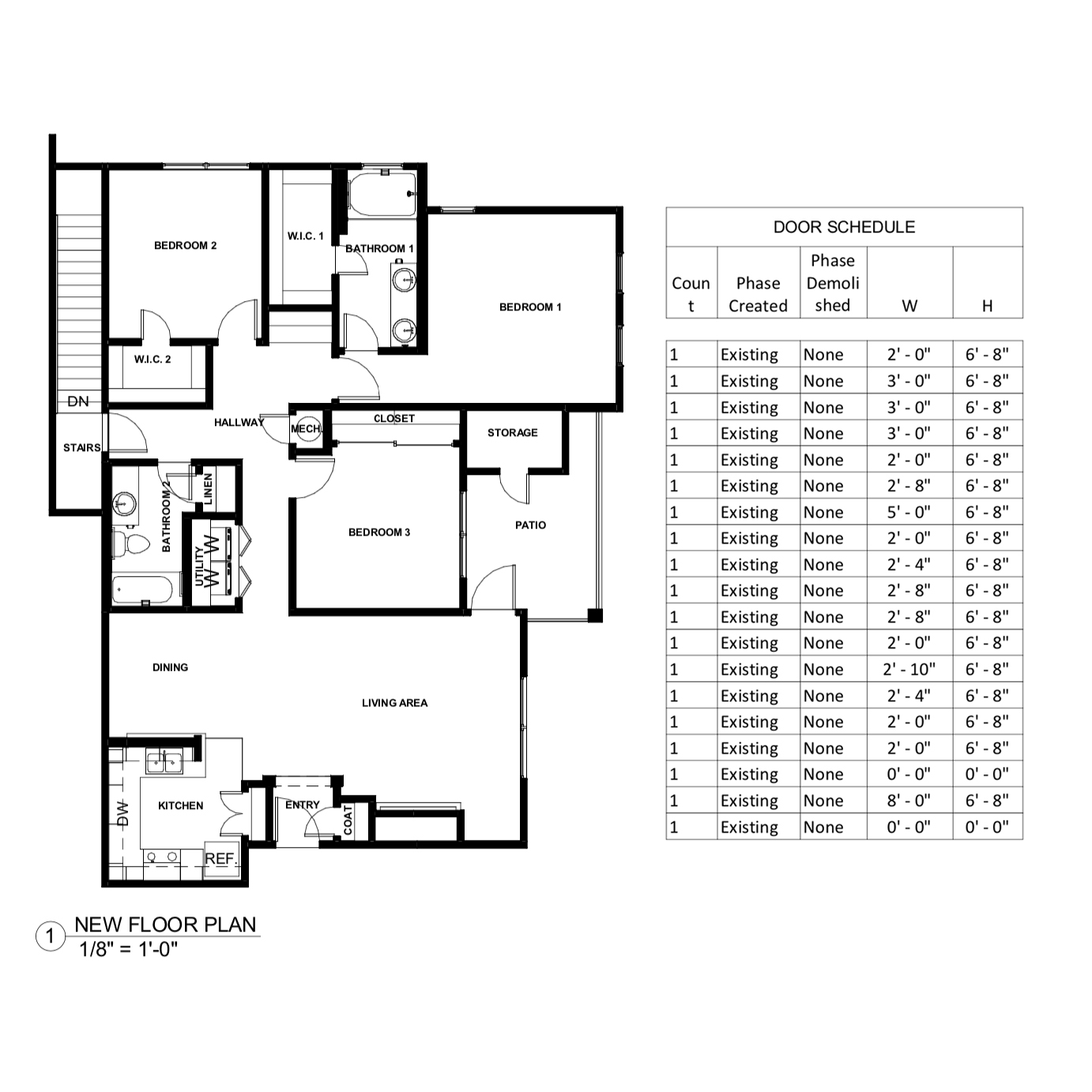

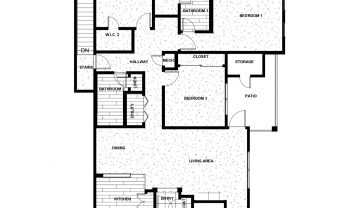

  • Interior Floor Plans detailed:

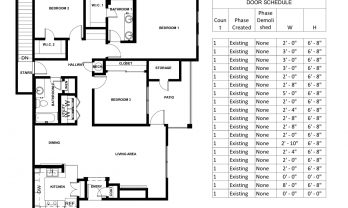

    • Door and Window Schedule
    • Floor Finishes
    • Structure of rooms and halls including columns
    • Electrical finishes, plumbing fixtures and Casework
  • Interior Reflected Ceiling Plans:
    • Lighting Fixtures
    • Electrical finish and cover plates, fire protection equipment
  • Interior Elevations included documentation of:
    • Electrical finish and fire protection
    • Material space between casework in Kitchens/bathrooms
    • Plumbing fixtures and Casework
Technical data
  • Services
    Laser Scanning, Modeling & Drafting
  • Deliverables
    Revit Model, AutoCAD Drawings, Photo Documentation
  • Equipment
    FARO 3D Laser Scanner
