Retail Asbuilts: Coffee Shop Chain

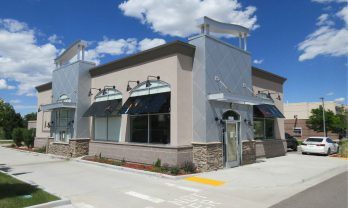

Small in size but big on detail, the transformation from restaurant to coffee shop began with an as-built survey from Coast 2 Coast. Deliverables include detailed site plans, CAD plans, elevations, as well as a thorough MEP report and comprehensive photo documentation.

Scope Summary

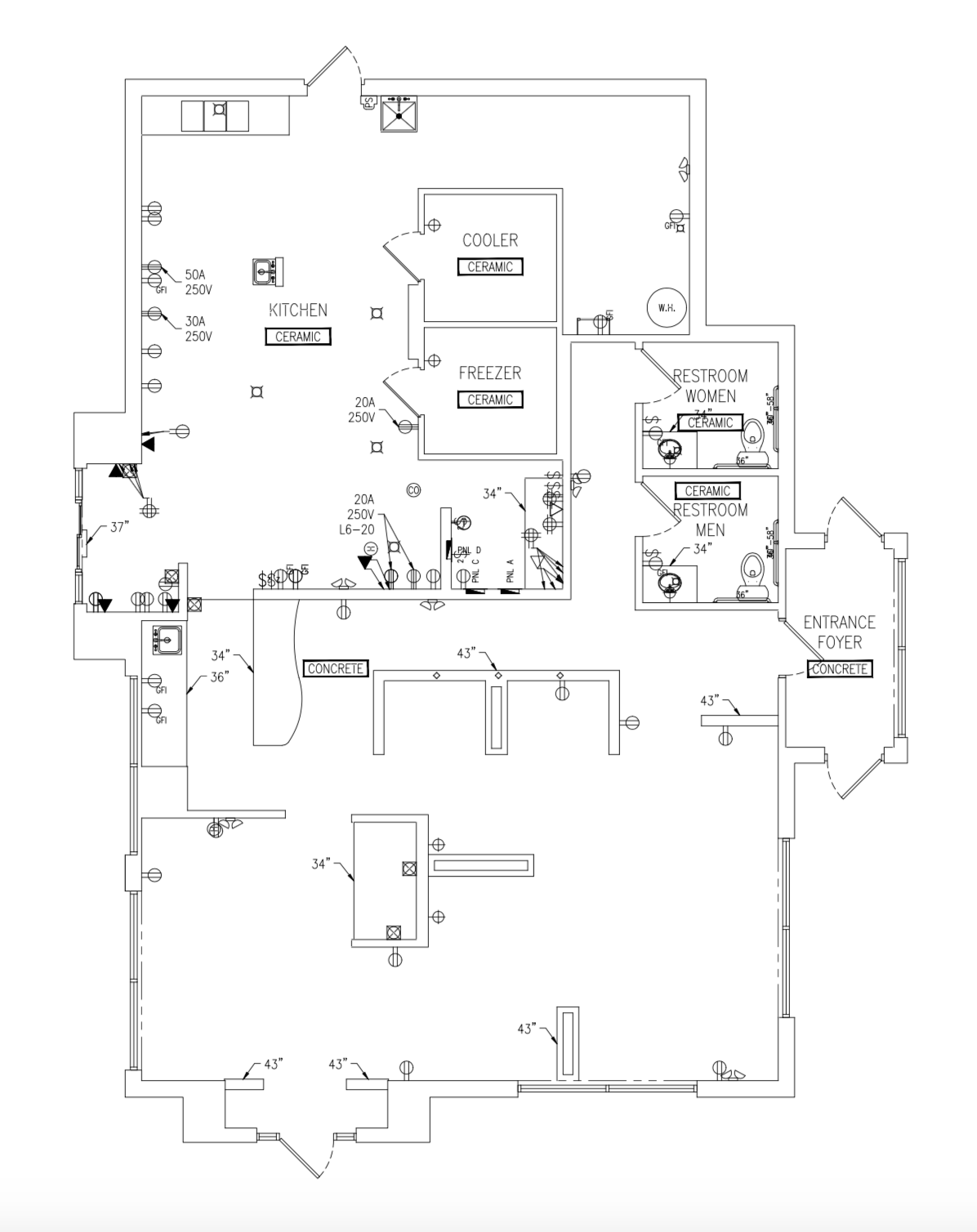

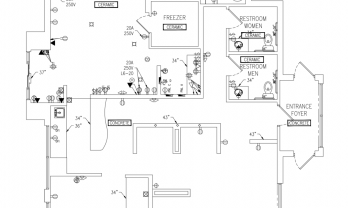

  • Floor Plan detailing visible structural elements and key restaurant equipment
  • Reflected Ceiling Plan including lighting and fire protection equipment

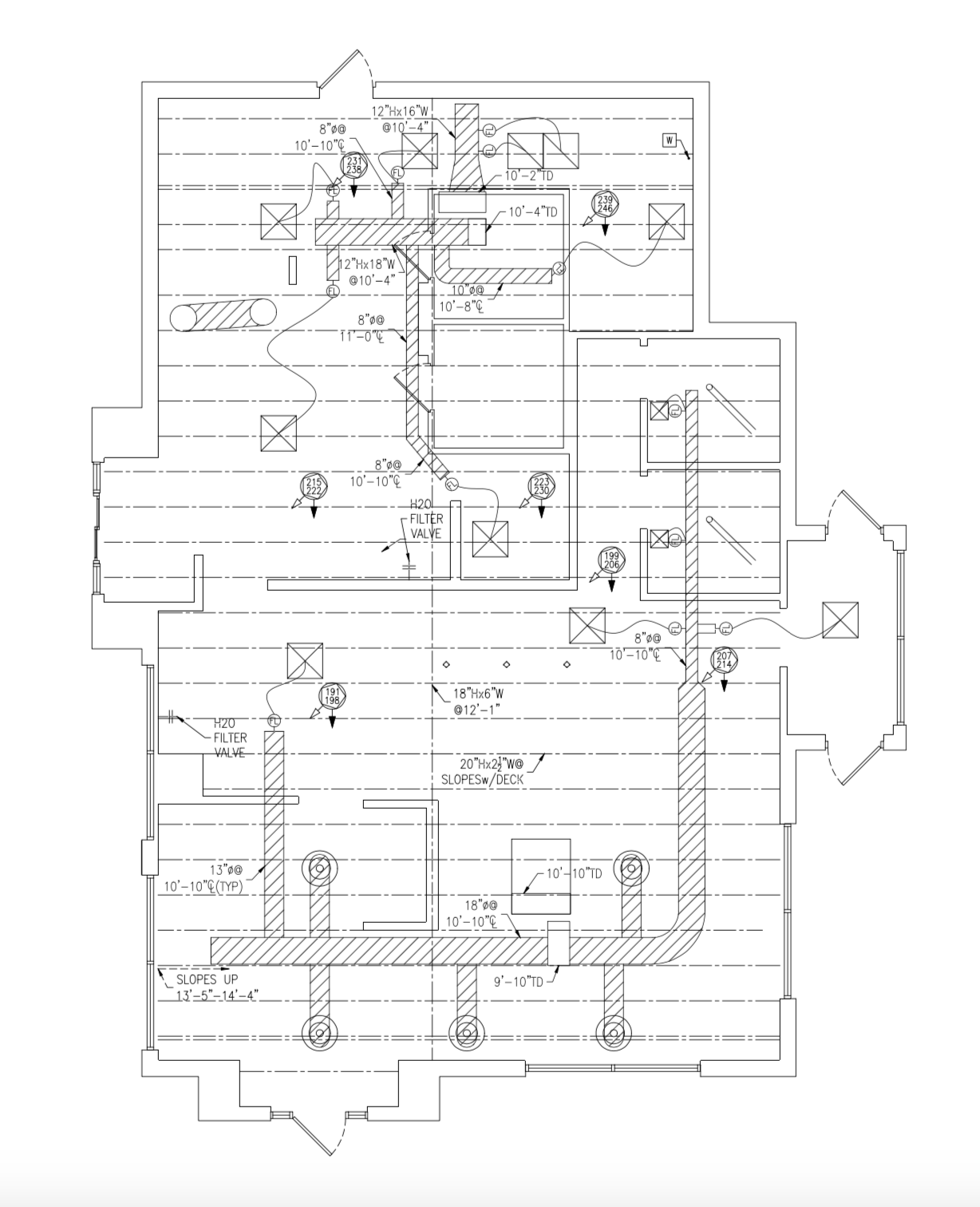

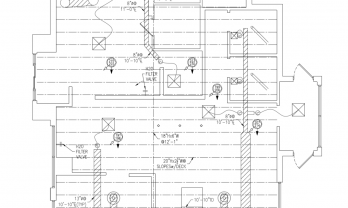

  • Above Ceiling Plans showing HVAC, piping, fire protection, and system line types

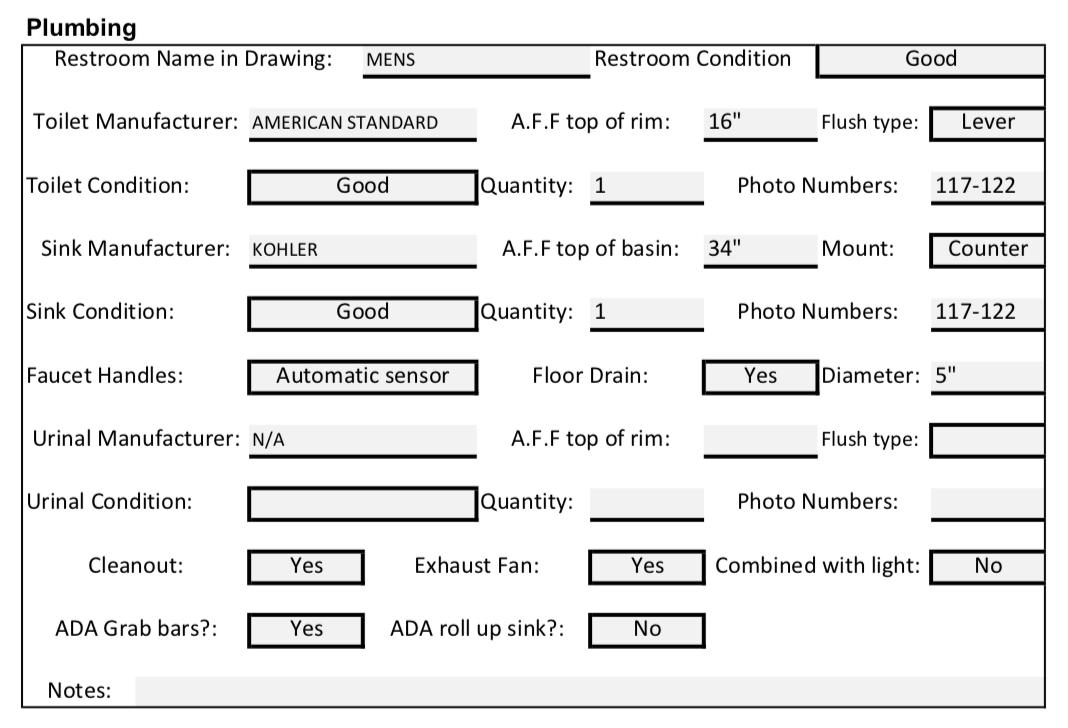

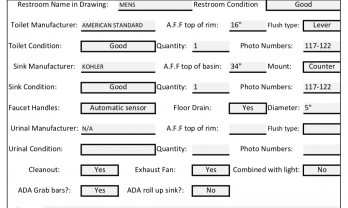

  • MEP report including utility entrances and sizing
  • Site Plan detailing the drive-up

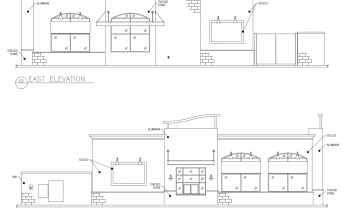

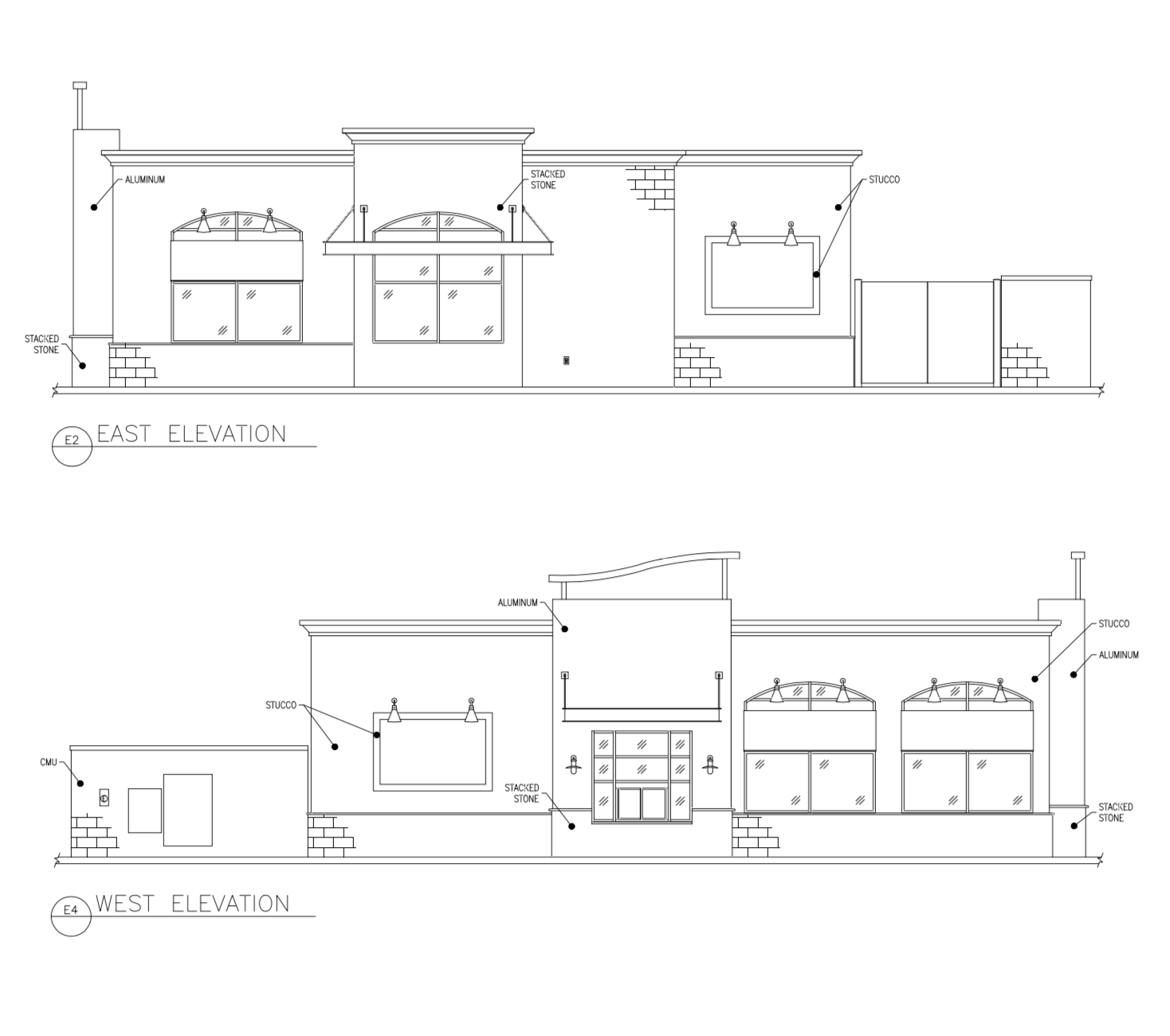

  • Exterior Elevations of all sides of the building

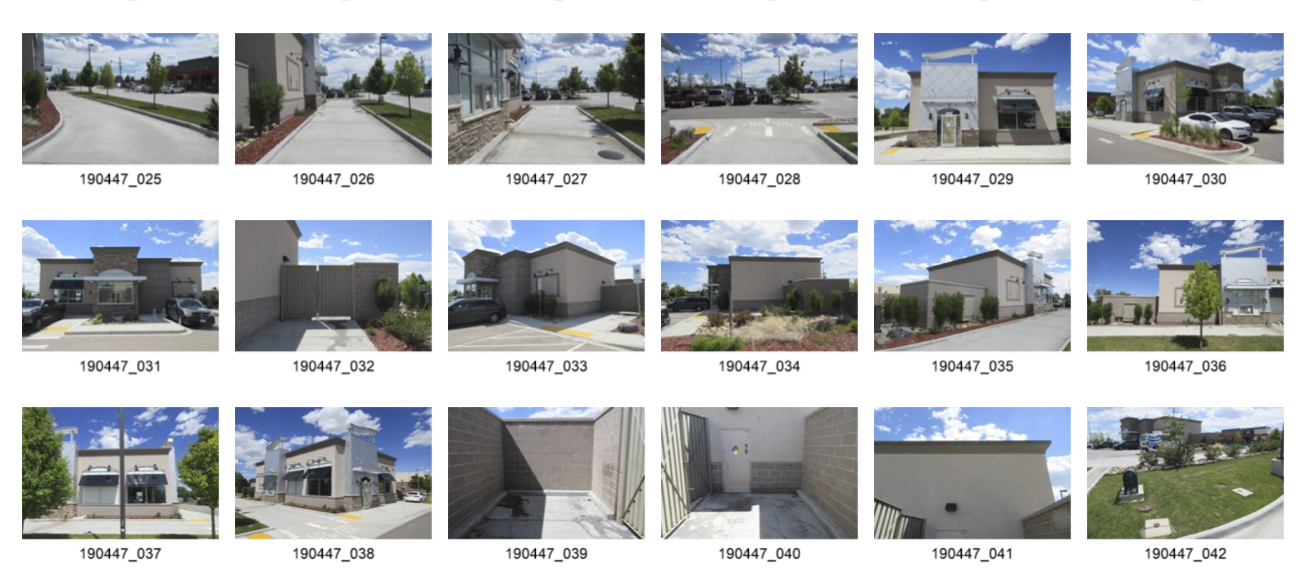

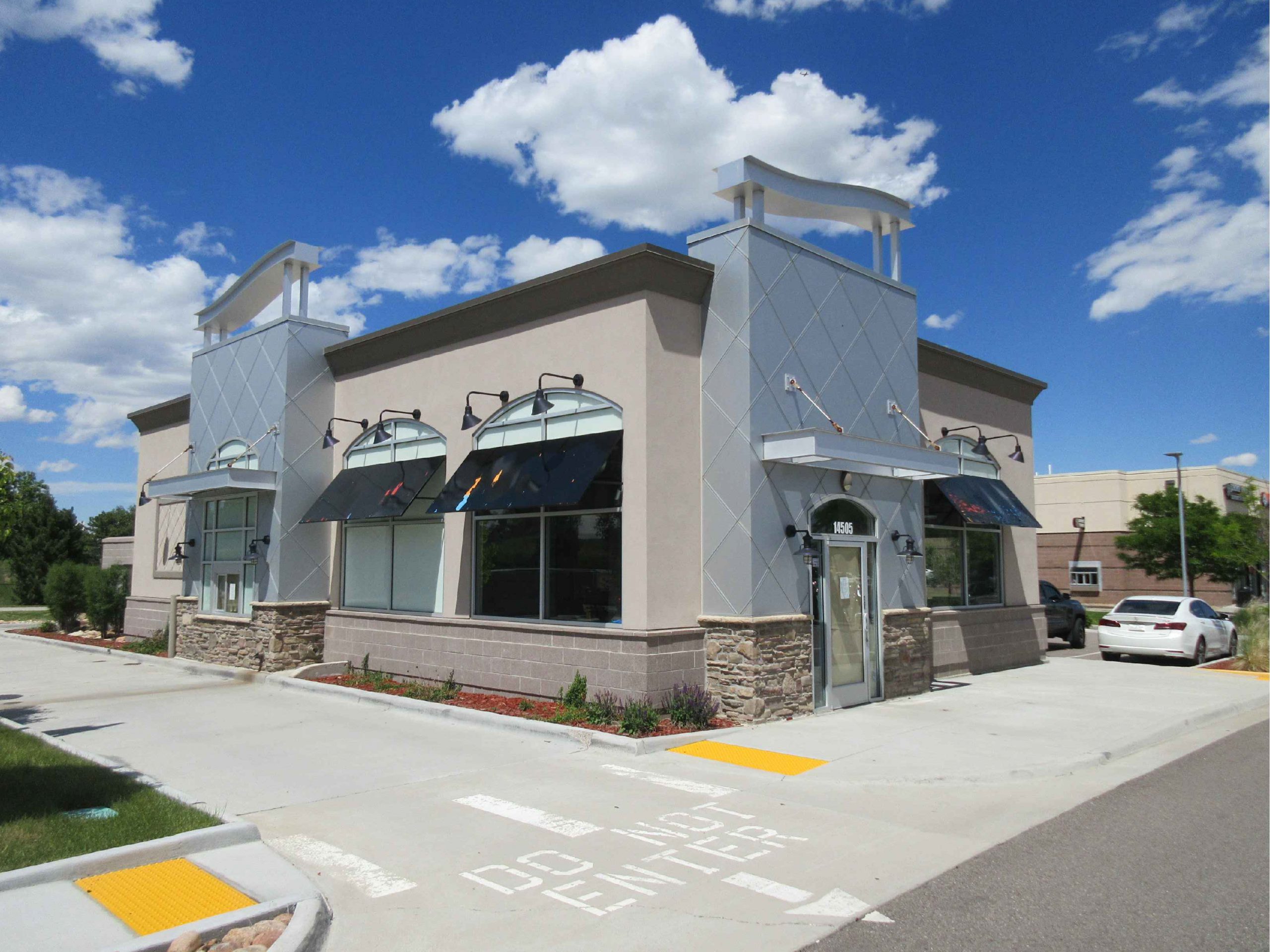

  • Photo documentation of building interior/exterior, above ceiling, roof, and systems
Technical data
  • Survey Method
    Laser Measure to CAD while on site
  • Deliverables
    AutoCAD Drawings, MEP Checklist, Photo Documentation
  • Equipment
    Laser Disto
